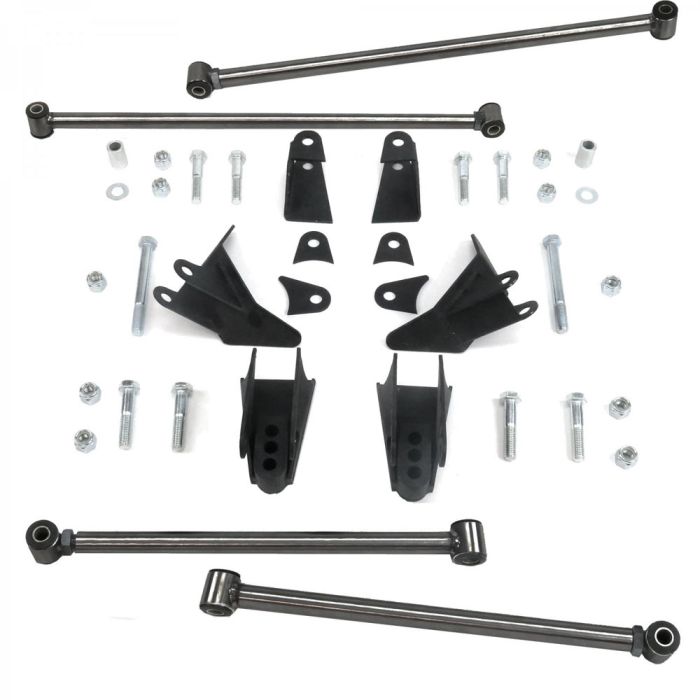

1955-1959 Chevy-GMC Truck Rear Four-Link Suspension Kit

• Heavy duty triangulated rear four-link
• 28in (711mm) long main bar
• 18in (457mm) long secondary bar
•  25 mm bar with 4.1mm bar wall thickness
• Includes heavy duty bushings
• 3 position coilover brackets
• 5mm bracket thickness
• Hardware included
• Fits 3in & 2 3/4in axles
• Welding required
• Manufacturer’s limited lifetime warranty
• NOTE: Springs and shocks are not included in this kit
• Special order- allow additional time

Helix's Heavy Duty Universal Triangulated 4-Link Kit is strong enough to handle your horsepower and torque.  With the same .156 wall tubing that is the standard in drag racing applications, Helix's 4-link kit will remain straight and perfectly aligned under even the most demanding applications. The adjustable rear 4-link features extra-long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squeak-free operation. Completely MIG welded for maximum strength. All mounts are cut from 3/16” plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included.

Chevrolet and GMC truck rear 4-link suspension dramatically improves handling and performance
