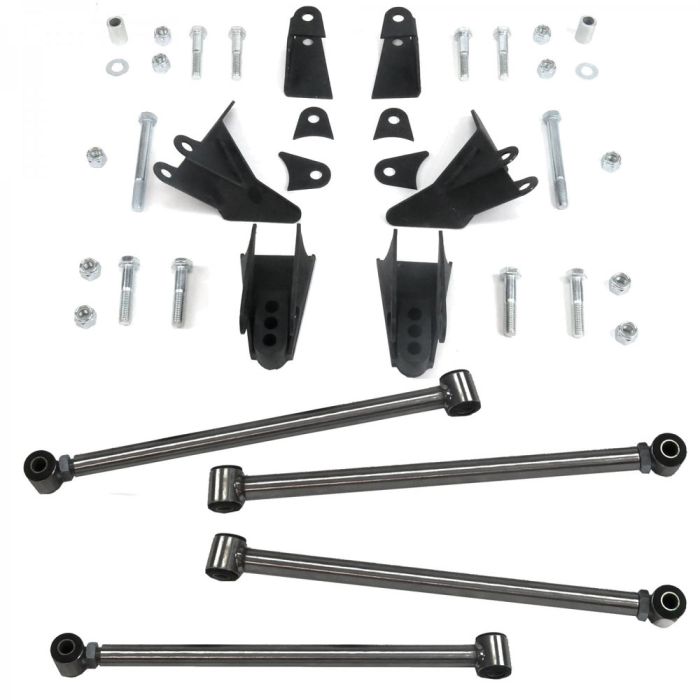

1960-1962 Chevy C10-GMC C15 Truck Rear Four-Link Suspension Kit, 2WD
Fitment
Product Details
- Heavy duty triangulated rear four-link
- 28in (711mm) long main bar
- 18in (457mm) long secondary bar
- 25 mm bar with 4.1mm bar wall thickness
- Includes heavy duty bushings
- 3 position coilover brackets
- 5mm bracket thickness
- Hardware included
- Fits 3in & 2 3/4in axles
- Welding required
- Manufacturer’s limited lifetime warranty
- NOTE: Springs and shocks are not included in this kit
- Special order- allow additional time
Helix's Heavy Duty Universal Triangulated 4-Link Kit is strong enough to handle your horsepower and torque. With the same .156 wall tubing that is the standard in drag racing applications, Helix's C10 4-link kit will remain straight and perfectly aligned under even the most demanding applications. The adjustable rear 4-link features extra-long 28 inch main bars and 18 inch secondary bars to provide you with the maximum in suspension travel and adjustability. Brass sleeved bushings guarantee a lifetime of squeak-free operation. Completely MIG welded for maximum strength. All mounts are cut from 3/16” plate. Special infinitely adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjustability. Fully plated mounting hardware included.
- 1960-1962 Chevrolet C10
- 1960-1962 GMC C15
Chevrolet and GMC truck rear 4-link suspension dramatically improves handling and performance
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 860961 |
---|---|
Brand | Dynamic Distribution |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet C10 Pickup Base | Series | Body | Notes | Year 1961, 1962 |
Make / Model Chevrolet Truck | Series | Body | Notes | Year 1961, 1962 |
Make / Model Chevrolet Truck Base | Series | Body | Notes | Year 1960 |
