1960-1972 Chevy-GMC Truck Painless Pro-Series 25 Circuit Harness , With Key In Dash
Fitment
Product Details

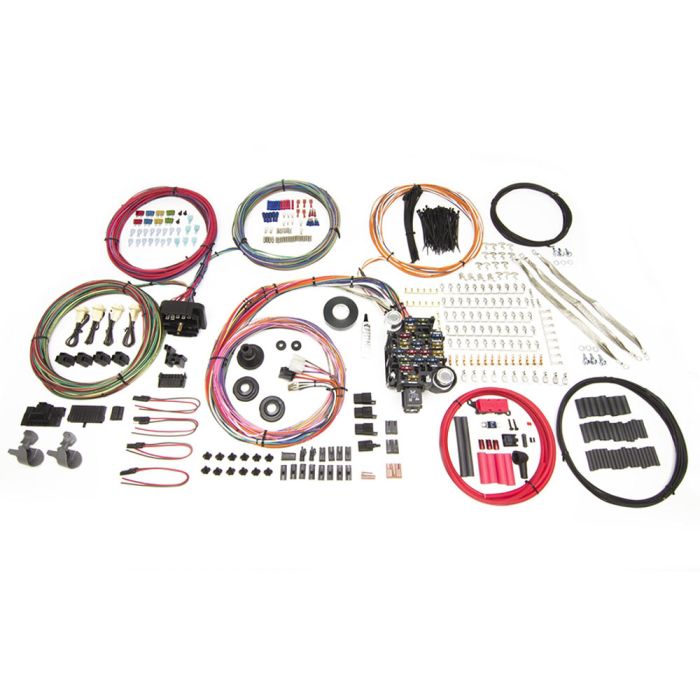

- Included with the GM Pro Series harnesses is:
- (4) H4 Headlight connectors- to support single (high/low) or dual headlights (separate high beams)
- (2) Turn signal connectors- fits connectors found on factory GM hard wired turn signals
- (4) Molded ¼ sockets for front & rear marker lights
- (2) HEI distributor connectors (+ and Tach)
- (2) Connectors for factor GM wiper motor
- GM washer pump connector
- Courtesy light sockets
- GM headlight switch connector
- GM dimmer switch connector
- GM brake switch connector
- GM turn signal switch flat connectors (early & late)
- GM ignition switch connectors on GM keyed column harnesses
- Neutral Safety Switch connector (column mounted or factory floor shifter mounted)
- Reverse Switch connector (column mounted or factory floor shifter mounted)
- Braided ground straps (for body and core support to frame grounding, also includes (6) self-tapping ¼” screws for mounting)
- Alternator bag kit with terminals, splices, resistor, diode to connect the alternator. (1) Connector for GM 10si alternator
- Assortment of insulated and non-insulated splices, ring terminals, heat shrink, grommets, cable ties, and cable tie clips.
- Watch instructional video here
The Painless Pro Series gives you everything you need to wire up your pro-touring or custom ride right the first time! Ample length is provided for each circuit, providing you the freedom to route and hide your wiring how you choose. Once you’ve got the harness fit how you like it, included are over 25 GM factory style connectors found on most ‘60s to early ‘90s GM switches, allowing you to turn the Pro Series harness into a direct fit harness for your application. LED ATC bladed fuses get you away from the old hard-to-find glass fuses, and will light up if blown making troubleshooting a painless task. The 6 gauge charge wire and midi will keep up with today’s high amperage alternators, and the provided front and rear ground harnesses making grounding your lighting circuits a breeze!
This harness features a GM Bulkhead style firewall pass through with the fuse block mounted inside the vehicle on the firewall, the exact same connector GM used on many vehicles from 1968-up. The wires are pre-terminated and utilize a bulkhead to mount to and pass through the firewall, keeping your wiring safe and protected and allowing you to easily disconnect the firewall forward wiring without having to remove wiring from each individual component.
Painless Pro-Series customizable wiring harness
WARNING This product can expose you to chemicals including Benzene which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 881372 |
|---|---|
| Eck OEM Number | 10416 |
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet Blazer | Series | Body | Notes | Year 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet C10 Pickup | Series | Body | Notes | Year 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet C20 Pickup | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet K10 Pickup | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet K20 Pickup | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Suburban | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967 |
| Make / Model Chevrolet Truck | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model GMC 1500 | Series | Body | Notes | Year 1966 |
| Make / Model GMC Jimmy | Series | Body | Notes | Year 1970, 1971, 1972 |
| Make / Model GMC Suburban | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967 |
