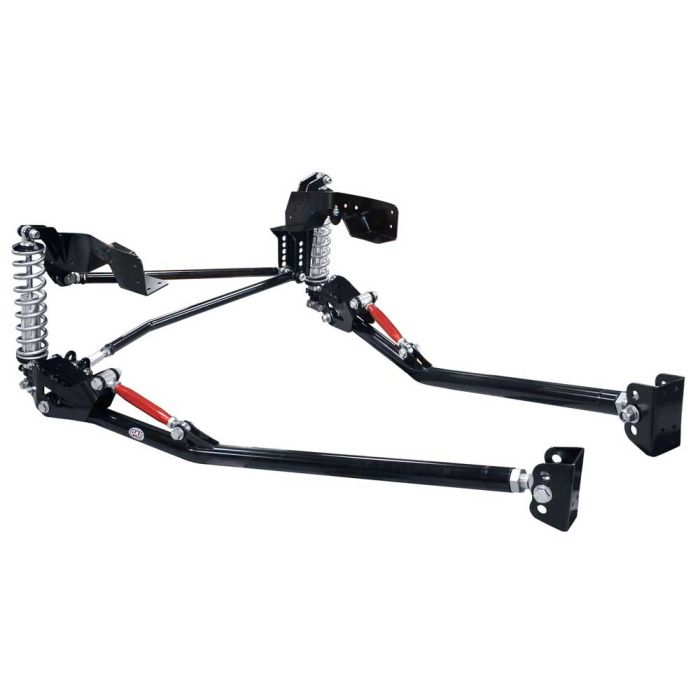

1963-1972 Chevy C10 QA1 Rear Suspension System With C Notch, Single Adjustable
- Kit Includes:
- Single adjustable coil-overs
- 2"-6" drop
- Adjustable shocks
- High travel springs
- Coil-over hardware
- Truck arms
- Panhard bar
- Brace bar
- C-Notch kit
- All required nuts, bolts, etc
- Made in the USA
QA1’s C10 bolt-on rear suspension system is designed to convert trucks originally equipped with a coil-spring rear suspension to coil-overs. This system relocates the coil-overs to the outside of the frame rail, closer to the wheel, providing more cornering stability and allowing room for popular aftermarket rear fuel tanks. The factory arms are replaced with a 7 gauge DOM steel tubular design with an integrated pinion angle adjustment, eliminating the need for angled shims, and feature QA1’s X Series self-lubricating rod ends. With the adjustable length arms, you can set the wheelbase to your exact specifications. The adjustable mounts allow for optimum anti-squat. A full-length, adjustable panhard bar with multiple mounting locations corrects roll center geometry for the desired amount of drop.
1967-72 Chevrolet truck coilover conversion suspension system dramatically improves handling and performance
WARNING This product can expose you to chemicals including Chromium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 852953 |
|---|---|
| Brand | QA1 Precision Products |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet C10 Pickup Base | Series | Body | Notes | Year 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Truck | Series | Body | Notes | Year 1967, 1968, 1969, 1970, 1971, 1972 |
