1966-1967 Nova Direct Fit 21 Circuit Chassis Harness,20110
Fitment
Product Details
- Number of Circuits: 21 Circuits - 12 Fuses w/ Horn Relay and Maxi Fuse
- Harness Length: Factory Fitment
- Fuse Type: Blade & Maxi Fuse
- Firewall Passthrough: Grommet
- Color Code Based: Factory GM
- Circuit Designations: Printed on Wires
- Connections Included: Headlight switch, Headlight connectors, Fuel gauge connnector, Dimmer switch, Brake switch, Heater switch, Blower resistor, Wiper switch, Backup switch, Horn, Dash light sockets, Warning light sockets
- Complete automotive chassis wiring harness fits:
- 1966 Chevrolet II or Nova
- 1967 Chevrolet II or Nova
- This harness includes circuits for:
- A/C & Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Glove Box Light
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges*
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights And License Plate Light
- Turn Signals
- Wipers
- * Including Wires For:
- Brake Warning Light
- Charge Light
- Fuel Gauge
- Oil Gauge
- Tachometer
Temperature Gauge

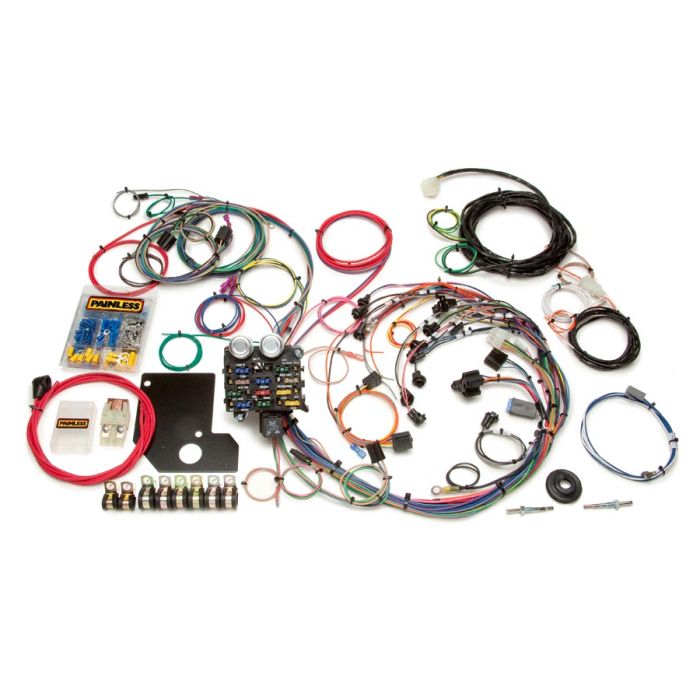

This 21 circuit direct fit wiring harness has many of the factory connectors already installed on the harness out of the box for your 1966 or 1967 Chevy II or Nova. Including: the headlight connectors & switch, fuel gauge connnector, dimmer switch, brake switch, heater switch, blower resistor, wiper switch, backup switch, horn, dash light sockets, and warning light sockets. This harness is split into three sections (engine, dome light, & rear) for easy installation and troubleshooting. You'll also find in this kit a harness for the factory air, a high output alternator pigtail with the connector installed, two door jam switches, 12 instrument panel light bulbs, eight harness mounting clamps, a custom Painless mounting plate for the fuse block, and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Wire you Nova once and wire it right with Painless Wiring!
28 Circuit Classic-Plus Customizable Chassis Painless Harness,Key In Dash
| Base Part Number | 852391 |
|---|---|
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet Chevy II Base | Series | Body | Notes | Year 1966, 1967 |
| Make / Model Chevrolet Chevy II Nova | Series | Body | Notes | Year 1966, 1967 |
| Make / Model Chevrolet Chevy II Nova SS | Series | Body | Notes | Year 1966, 1967 |
