1967-1972 Chevy-GMC Truck Trans Dapt Performance LS Swap In A Box, HTC Polished Headers, 2WD
Fitment
Product Details
- Tube diameter : 1-3/4in
- Ball and socket style (gasketless) collector
- Automatic/manual floor shift
- Collector size 3in
- Chevy LS Series engine
- HTC Polished silver metallic headers
- 3in exhaust system diameter
- Reducer outlet: 2-1/2in
- Primary tube diameter : 1.75in
- 3/8in flange thickness
- Mid-length tube headers
- O2 sensors not included, no O2 provision
- Works with power steering and air conditioning
- Transmission compatibility: 4L60E, 4L70E, 4L80E, 4L85E, 6L80E, 6L90E, T-56
- For factory style cylinder heads
- Steel oil pan: capacity 5 quarts
- Non-baffled, Wet sump
- Sump dimensions: driver side: 4 3/4" x 3" x 8 1/4" passenger side: 7" x 8 1/4"
- Oil pan dimensions: 2in at front of oil pan; 6in at rear sump

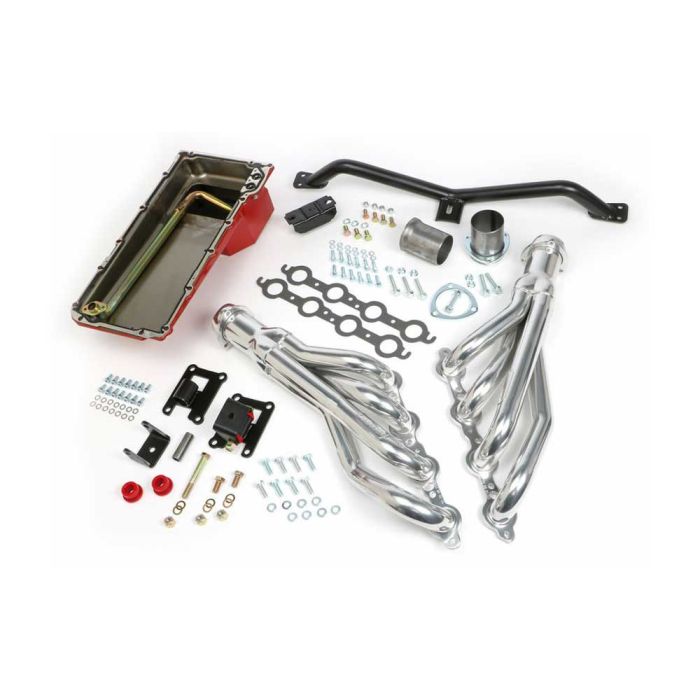

- Kit contains: headers, head flange gaskets, head flange bolts, collector bolts and gaskets, socket style exhaust system adapters (reducers); transmission crossmember, oil pan, oil pan gaskets, oil pick-up tube, pan bolts; frame mounts, engine mounts and hardware
- NOTE: Requires relocation of oil filter. Pan has integrated -10AN inlet and outlet ports
- NOTE: Not legal for street use on '75-later model years! Legal for off-road use only
- NOTE: Not CARB exempt
- NOTE: 2WD only
More horsepower and improved performance? Yes Please! Without question an LS engine conversion for Chevy or GMC is the way to go. An LS engine gives you enormous power combined with dependable performance. Trans Dapt Performance’s LS Swap In A Box gives you everything you need for your engine installation. Designed to work with floor shift, two wheel drive models. Count on Eckler’s Trucks for all your Chevrolet and GMC Truck parts and accessories!
Note: Not CARB exempt, not legal for sale or use in the state of California
- Chevrolet:
- 1967-1972 C10 Pickup
- 1967-1972 C10 Panel
- 1967-1972 C10 Suburban
- 1967-1972 C20 Pickup
- 1967-1972 C20 Panel
- 1967-1972 C20 Suburban
- GMC:
- 1967-1972 C15/C1500 Pickup
- 1967-1972 C15/C1500 Suburban
Trans Dapt Performance LS engine swap in a box makes your LS installation quick and easy
WARNING This product can expose you to chemicals including Chromium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 855573 |
---|---|
Brand | Trans-Dapt Performance |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet C10 Pickup Base | Series | Body | Notes | Year 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet C20 Pickup Base | Series | Body | Notes | Year 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet K20 Pickup Base | Series | Body | Notes | Year 1968 |
Make / Model Chevrolet Truck | Series | Body | Notes | Year 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model GMC Jimmy Base | Series | Body | Notes | Year 1970 |
