SKU
61-457368-1
1973-1987 Chevy-GMC Truck 27 Circuit Customizable Harness
0
Reviews
Add Your Review
$643.99
Kit
Fitment
Blazer, 1973 thru 1974
View More
Product Details

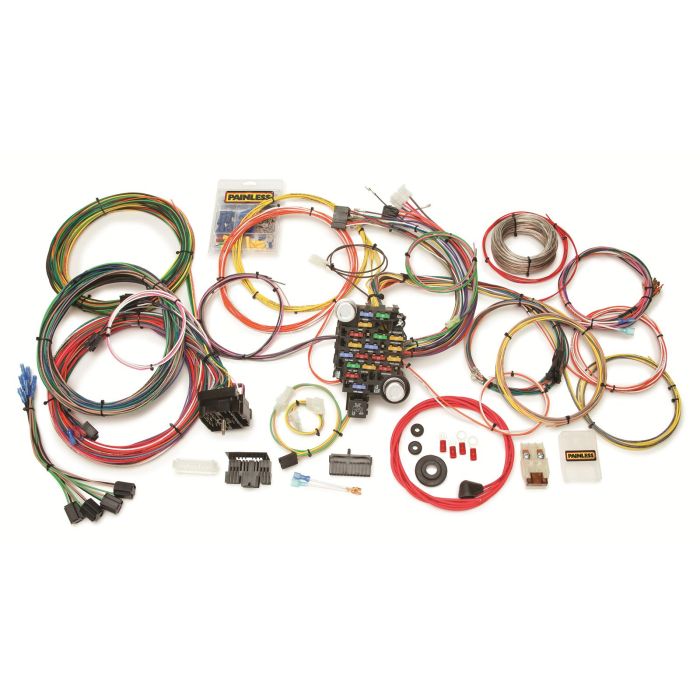

his 27 circuit 1973-1987 GMC/Chevy Painless wiring harness was designed to fit the trucks, Blazers, and Suburbans, whether C10, C20, or C30. It features a factory style bulkhead connector, allowing for easy mounting of the fuse block in the factory location, and has many of the factory connectors already installed on the harness out of the box. Including connectors for: the headlight switch, dimmer switch, wiper motor, ignition switch, blower motor & switch, blower resistor, and instrument cluster. Each wire is custom printed with the circuit identification as well as using GM color codes for easy installation. Wire your Squarebody once and wire it right with Painless!
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Watch instructional video here
- Includes circuits for:
- Air conditioning
- Heat
- Camper cover lights
- Cigarette lighter
- Four wheel drive switch
- Backup lights
- Charging
- Cruise control
- Dome light
- Electric choke
- Electric fuel pump
- Emergency flashers
- Fan relay activation power
- Fused power source
- Headlights
- Horn (relay)
- Ignition coil
- Instrument panel lighting and gauges
- Park lights
- Power antenna
- Power door locks
- Power windows
- Radio/clock (constant and switched)
- Starting
- Taillights
- Third brake lights
- Turn signals
- Wipers and washer pump
1973-1987 Chevrolet and GMC Truck 27 Circuit Customizable Harness
| Base Part Number | 457368 |
|---|---|
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet Blazer Base | Series | Body | Notes | Year 1973, 1974 |
| Make / Model Chevrolet C10 Cheyenne | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet C10 Custom | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet C10 Custom Deluxe | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet C10 Scottsdale | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet C10 Silverado | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet C10 Pickup Base | Series | Body | Notes | Year 1973, 1974 |
| Make / Model Chevrolet C20 Pickup Base | Series | Body | Notes | Year 1973, 1974 |
| Make / Model Chevrolet K10 Cheyenne | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet K10 Custom Deluxe | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet K10 Scottsdale | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet K10 Silverado | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet K10 Pickup Base | Series | Body | Notes | Year 1973, 1974 |
| Make / Model Chevrolet K20 Pickup Base | Series | Body | Notes | Year 1973, 1974 |
| Make / Model Chevrolet Truck | Series | Body | Notes | Year 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987 |
| Make / Model GMC C15 Base | Series | Body | Notes | Year 1975 |
| Make / Model GMC Jimmy Base | Series | Body | Notes | Year 1973, 1974 |
