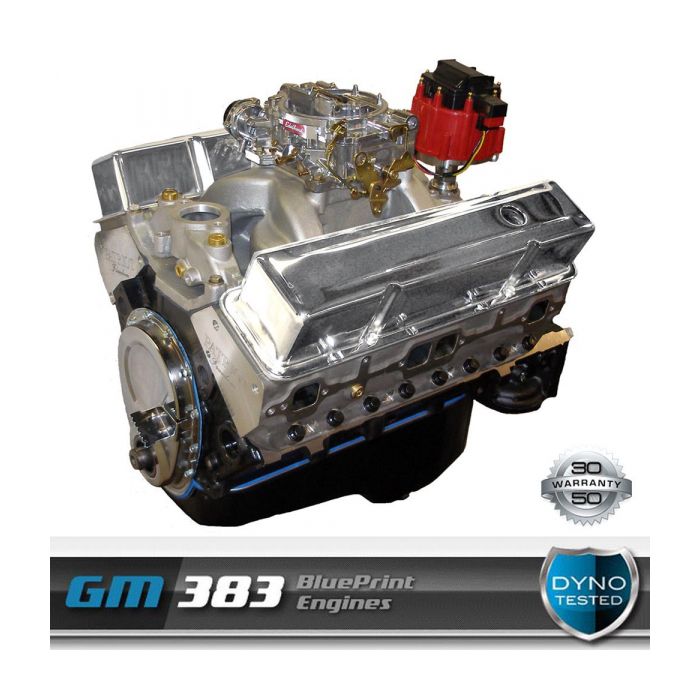

BluePrint 383 C.I. Small Block Chevy 430 HP Crate Engine
Fitment
Product Details
Shipping Notes
- 383 Small Block Chevy Crate Engine, 430HP, 450 Ft. Lbs. Torque, 1.09 Per Cubic Inch
- Dyno Tested Prior To Shipping, Includes Actual Dyno Test Sheet & Detailed Install Guide
- 30 Month, 50,000 Mile Limited Manufacturer Warranty
- Balanced, Blueprinted, & Professionally Assembled By Hand In the USA
- Not legal for sale in California or New York for 1976 or newer vehicles
SPECIFICATIONS:
- Engine Size: 383 C.I. Small Block Chevy
- Block: 4 Bolt Main, 1 Piece Rear Main Seal, Passenger Side Dipstick, Squared & Parrallel Decked, Align Honed Main Bearing Bore, Cylinders Are Sonic Tested For Thickness
- Rotating Assembly: New Cast Steel Crank w/3.75" Stroke, Cast 5.7" Heavy Beam Rods with 150,000 PSI Bolts, Cast Hypertectic 10.0:1 Pistons, Heavy Duty Double Roller Timing Chain
- Cylinder Heads: BluePrint 23 Degree Aluminum, 64CC Chamber, 195cc Intake & 75cc Exhaust Runners, 2.02" Intake & 1.60" Exhaust Stainless Valves w/Swirl Polished Undercut Stem, 3 Angle Valve Job, Chrome Nickel Valve Seats, Manganese Bronze Valve Guides, Chromeoly Retainers, 7 Degree Valve Locks, Dual Valve Springs, Guideplates, 3/8" Rocker Arm Studs w/Guide Plates For 5/16" Pushrods, & Viton Valve Stem Seals, Intake Flows 252CFM & Exhaust Flows 207 CFM @ .500 Lift & 28" Of Vacuum
- Camshaft: Aggressive Hydraulic Roller, .528 Intake, .536 Exhaust, 221 Intake, 226 Exhaust Duration @0.50, 110 Lobe Separation
- Intake Manifold: Dual Plane Satin Aluminum, Similar To Edelbrock Performer RPM
- Carburetor: 750 CFM Holley, Manual Choke, Jetted For 2,150 Ft. Elevation, Re-Jetting May Be Required
- Distributor: BluePrint or MSD HEI, Ignition Timing Set to 34 Degrees At 3,500 RPM
- Includes: Valve Covers, Oil Pan, Timing Cover, Brass Freeze Plugs
- Does Not Include: Spark Plugs, Spark Plug Wires, Harmonic Balancer, Flex Plate Or Flywheel, Or Air Cleaner
- Recommended Harmonic Balancer: 400 C.I. Weighted 8" Diameter
- Recommended Flex Plate Or Flywheel: 350 Weighted (1-Piece Rear Main Seal Externally Balanced)
- Recommended Spark Plugs: Champion 792 with .045 Gap
- Recommended Stall Converter: 2,000 - 2,400 RPM
- Recommended Air Cleaner: 14"x3"
- Recommended Engine Oil: 10W30 Non-Synthetic
- Recommended Minimum Octane Fuel: 91
- NOTE: This engine may not clear your factory hood...hood modifications or an aftermarket hood may be required. This engine is shipped dry without engine oil. All horsepower and torque numbers are provided by the crate engine manufacturer and are within 2% of advertised numbers.. These numbers were achieved on a professionally operated dynamometer to compensate for variables such as altitude, temperature, relative humidity, vapor pressure, and barometric pressure. The number provided were measured is at the flywheel, corrected to SAE J1349 standards, and NOT at the rear wheels. Measured rear wheel horsepower can be anywhere from 15-25% less than flywheel horsepower. Many factors will affect horsepower the horsepower numbers you will see and include exhaust header selection & diameter, ignition and fuel system components, fuel octane rating & quality, proper torque converter selection (if equipped with automatic transmission), drivetrain efficiency, etc.
Your classic deserves a worthy powerplant. Professionally hand built 383 cubic inch small block Chevy crate engine from BluePrint Engines. We're talking 430 horses at 5,800 RPM right out of the box...that's as much as the C6 LS3 Corvette! That's enough power to light up your tires and put the fun and excitement where it belongs...under YOUR hood! And, thanks to modern technology, you'll get all that power with good reliability and drivability.
With a proven Blueprint Crate Engine combination, there's really nothing to figure out and no excessive downtime waiting for your engine to be rebuilt right. Just remove your factory engine and install one of our BluePrint Crate Engines. Of course, Eckler's offers a complete line of add-on accessories to finish your engine just the way like. Add it all up and a BluePrint Crate Engine makes the most sense for your Classic.
About BluePrint Engines: BluePrint Engines was founded 20 years ago on the principle of building great engines at affordable prices. Since then, they've built over 300,000 engines and have been featured on Over-Hauling, Counting Cars, Fat and Furious TV shows. BluePrint relentlessly builds and dyno tests engine combinations that deliver a balanced combination of power with long term durability. Once a winning combination is approved, their ISO 9001:2008 world class standards to produce each engine with consistent and repeatable performance and high quality. In fact, all engines will deliver power within 2% of the advertised number which leads the industry.
An engine is only as good as the components in it and that's why BluePrint selects name brand components are used wherever possible. Each engine is assembled carefully by hand by a master engine builder. Upon completion, each engine is hot tested for leaks and dyno tested...you even receive the actual dyno test sheet of YOUR engine before shipping. BluePrint stands behind each crate engine with a 30 month 50,000 mile limited warranty.
383/430HP blueprinted small block crate engine adds high performance and horsepower
383/430HP blueprinted small block crate engine adds high performance and horsepower
WARNING This product can expose you to chemicals including CADMIUM which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 369831 |
---|---|
Eck OEM Number | BP38313CTC1 |
Brand | N/A |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet Chevelle 300 | Series | Body | Notes | Year 1967, 1968 |
Make / Model Chevrolet Chevelle 300 Deluxe | Series | Body | Notes | Year 1967, 1968, 1969 |
Make / Model Chevrolet Chevelle Base | Series | Body | Notes | Year 1964, 1965, 1966, 1967, 1968, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Concours | Series | Body | Notes | Year 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Concours Estate | Series | Body | Notes | Year 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Deluxe | Series | Body | Notes | Year 1965, 1966, 1967, 1973 |
Make / Model Chevrolet Chevelle Greenbrier | Series | Body | Notes | Year 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes | Year 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Nomad | Series | Body | Notes | Year 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle SS | Series | Body | Notes | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Corvette Collectors Edition | Series | Body | Notes | Year 1982 |
Make / Model Chevrolet Corvette Pace Car | Series | Body | Notes | Year 1978 |
Make / Model Chevrolet Corvette Standard | Series | Body | Notes | Year 1953, 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1968, 1977, 1978, 1979, 1980, 1981, 1982 |
Make / Model Chevrolet Corvette Stingray | Series | Body | Notes | Year 1963, 1964, 1965, 1966, 1967, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976 |
Make / Model Chevrolet Laguna Base | Series | Body | Notes | Year 1973, 1974, 1975 |
Make / Model Chevrolet Laguna Estate | Series | Body | Notes | Year 1973 |
Make / Model Chevrolet Laguna S3 | Series | Body | Notes | Year 1975, 1976 |
Make / Model Chevrolet Laguna Type S-3 | Series | Body | Notes | Year 1974 |
Make / Model Chevrolet Malibu Base | Series | Body | Notes | Year 1964, 1965, 1966, 1967, 1973, 1974, 1975, 1976, 1977, 1978, 1979 |
Make / Model Chevrolet Malibu Classic | Series | Body | Notes | Year 1974, 1975, 1976, 1977, 1978, 1979 |
Make / Model Chevrolet Malibu Classic Estate | Series | Body | Notes | Year 1975, 1976, 1978, 1979 |
Make / Model Chevrolet Malibu Classic Landau | Series | Body | Notes | Year 1976, 1977, 1978, 1979 |
Make / Model Chevrolet Malibu Classic Sport | Series | Body | Notes | Year 1977, 1979 |
Make / Model Chevrolet Malibu Estate | Series | Body | Notes | Year 1973, 1974, 1979 |
Make / Model Chevrolet Malibu Landau | Series | Body | Notes | Year 1976, 1979 |
Make / Model Chevrolet Malibu Police | Series | Body | Notes | Year 1979 |
Make / Model Chevrolet Malibu Sport | Series | Body | Notes | Year 1977, 1979 |
