SKU
50-378041-1
Alt #:
PSLS4272SCT

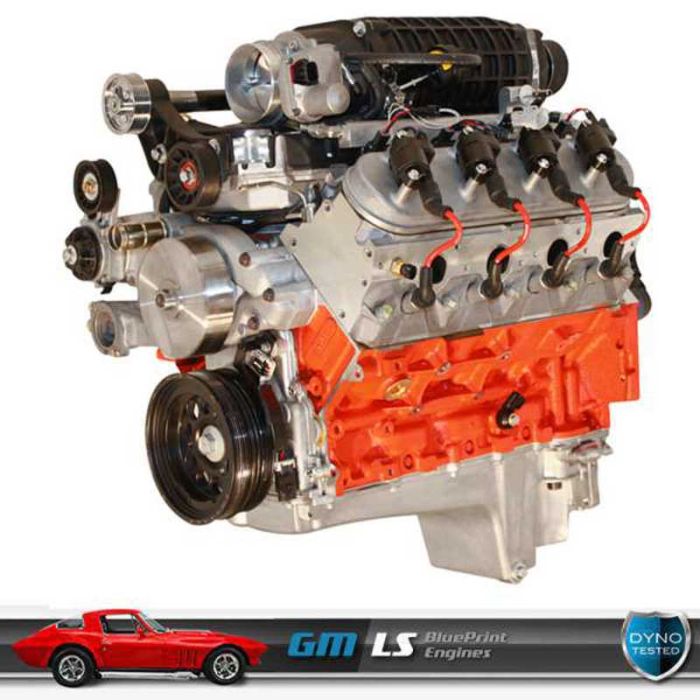

Blueprint Pro Series 427 LS3 Small Block 750HP Supercharged Crate Engine
0
Reviews
Add Your Review
$21,599.00
Each
Fitment
Chevelle, 1964 thru 1973
View More
Product Details
SPECIFICATIONS:
Engine Size: 427 C.I. Small Block Chevy LS3
Block: New GM 6.2L Aluminum, 1-Piece Rear Main Seal, Squared & Parrallel Decked, Align Honed Main Bearing Bore, Cylinders Are Sonic Tested For Thickness
Rotating Assembly: New Forged Steel Crank w/4.125" Stroke, 58X Reluctor Wheel, Forged 6.125" I Beam Rods with 150,000 PSI Bolts, Mahle Performance Rings, Forged Aluminum 10.8:1 Pistons
Cylinder Heads: BluePrint LS3 Aluminum, 68CC Chamber, Stainless Valves w/Swirl Polished Undercut Stem, 3 Angle Valve Job, Chrome Nickel Valve Seats, Manganese Bronze Valve Guides, Chromeoly Retainers, 7 Degree Valve Locks, Dual Valve Springs, Rocker Arm Studs w/Guide Plates For Pushrods, & Viton Valve Stem Seals, Intake Flows
Camshaft: Aggressive Hydraulic Roller, .624 Intake, .624 Exhaust, 239 Intake, 255 Exhaust Duration @0.50, 114 Lobe Separation
Intake Manifold: Magnacharger Cast Aluminum LS3 With Integrated Intercooler
Supercharger: Magnacharger TVS 2300 Intercooled Roots Hybrid Supercharger w/3" Supercharger Drive Pulley
Ignition: Coil Packs, Controlled By Powertrain Control Module
Includes: Magnuson TVS 2300 Interocoled Supercharger, Complete Fuel Injection with Pre-Tuned Computer, Wiring Harness, All Necessary Sensors, Valve Covers, Retro Fit Oil Pan, Aluminum Water Pump, Gear Driven Starter, Timing Cover, Harmonic Balancer, AC Delco Spark Plugs 41-985 w/.040 GAP, Spark Plug Wires, & Coil Packs
Does Not Include: LS Accessory Drive System With Accessories, LS Crossmember, LS Engine Mounts, LS Engine Swap Radiator & Hoses, Non-Weighted Flexplate Or Flywheel, Exhaust Manifolds Or Headers, Custom Exhaust Adapting & Modifications, Hood Modifications To Clear The Supercharger, Engine Oil Filter, Adapters To Fit Your Transmission, Installation
Recommended Flex Plate Or Flywheel: Non-Weighted
Recommended Stall Converter: 2,000 - 2,400 RPM
Recommended Engine Oil: 10W30 Non-Synthetic
Recommended Minimum Octane Fuel: 91-93
NOTE: This engine may not clear your factory hood...hood modification or an aftermarket hood may be required. This engine is shipped dry without engine oil. All horsepower and torque numbers are provided by the crate engine manufacturer and are within 2% of advertised numbers.. These numbers were achieved on a professionally operated dynamometer to compensate for variables such as altitude, temperature, relative humidity, vapor pressure, and barometric pressure. The number provided were measured is at the flywheel, corrected to SAE J1349 standards, and NOT at the rear wheels. Measured rear wheel horsepower can be anywhere from 15-25% less than flywheel horsepower. Many factors will affect horsepower the horsepower numbers you will see and include exhaust header selection & diameter, ignition and fuel system components, fuel octane rating & quality, proper torque converter selection (if equipped with automatic transmission), drivetrain efficiency, etc.About BluePrint Engines: BluePrint Engines was founded 20 years ago on the principle of building great engines at affordable prices. Since then, they've built over 300,000 engines and have been featured on Over-Hauling, Counting Cars, Fat and Furious TV shows. BluePrint relentlessly builds and dyno tests engine combinations that deliver a balanced combination of power with long term durability. Once a winning combination is approved, their ISO 9001:2008 world class standards to produce each engine with consistent and repeatable performance and high quality. In fact, all engines will deliver power within 2% of the advertised number which leads the industry. An engine is only as good as the components in it and that's why BluePrint selects name brand components are used wherever possible. Each engine is assembled carefully by hand by a master engine builder. Upon completion, each engine is hot tested for leaks and dyno tested...you even receive the actual dyno test sheet of YOUR engine before shipping. BluePrint stands behind each crate engine with a 30 month 50,000 mile limited warranty.
Shipping Notes
This item is a TRUCK ship item. You will be able to see your shipping estimate at checkout.
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- 427 LS3 Supercharged Small Block Chevy, 750HP, 740 Ft. Lbs. Torque, 1.76 Per Cubic Inch
- 100 More HP Than Corvette Z06 On 91-93 Octane Pump Gasoline
- Dyno Tested Prior To Shipping, Includes Actual Dyno Test Sheet & Detailed Install Guide
- 30 Month, 50,000 Mile Limited Manufacturer Warranty
- Balanced, Blueprinted, & Professionally Assembled By Hand In the USA
SPECIFICATIONS:
- Engine Size: 427 C.I. Small Block Chevy LS3
- Block: New GM 6.2L Aluminum, 1-Piece Rear Main Seal, Squared & Parrallel Decked, Align Honed Main Bearing Bore, Cylinders Are Sonic Tested For Thickness
- Rotating Assembly: New Forged Steel Crank w/4.125" Stroke, 58X Reluctor Wheel, Forged 6.125" I Beam Rods with 150,000 PSI Bolts, Mahle Performance Rings, Forged Aluminum 10.8:1 Pistons
- Cylinder Heads: BluePrint LS3 Aluminum, 68CC Chamber, Stainless Valves w/Swirl Polished Undercut Stem, 3 Angle Valve Job, Chrome Nickel Valve Seats, Manganese Bronze Valve Guides, Chromeoly Retainers, 7 Degree Valve Locks, Dual Valve Springs, Rocker Arm Studs w/Guide Plates For Pushrods, & Viton Valve Stem Seals, Intake Flows
- Camshaft: Aggressive Hydraulic Roller, .624 Intake, .624 Exhaust, 239 Intake, 255 Exhaust Duration @0.50, 114 Lobe Separation
- Intake Manifold: Magnacharger Cast Aluminum LS3 With Integrated Intercooler
- Supercharger: Magnacharger TVS 2300 Intercooled Roots Hybrid Supercharger w/3" Supercharger Drive Pulley
- Ignition: Coil Packs, Controlled By Powertrain Control Module
- Includes: Magnuson TVS 2300 Interocoled Supercharger, Complete Fuel Injection with Pre-Tuned Computer, Wiring Harness, All Necessary Sensors, Valve Covers, Retro Fit Oil Pan, Aluminum Water Pump, Gear Driven Starter, Timing Cover, Harmonic Balancer, AC Delco Spark Plugs 41-985 w/.040 GAP, Spark Plug Wires, & Coil Packs
- Does Not Include: LS Accessory Drive System With Accessories, LS Crossmember, LS Engine Mounts, LS Engine Swap Radiator & Hoses, Non-Weighted Flexplate Or Flywheel, Exhaust Manifolds Or Headers, Custom Exhaust Adapting & Modifications, Hood Modifications To Clear The Supercharger, Engine Oil Filter, Adapters To Fit Your Transmission, Installation
- Recommended Flex Plate Or Flywheel: Non-Weighted
- Recommended Stall Converter: 2,000 - 2,400 RPM
- Recommended Engine Oil: 10W30 Non-Synthetic
- Recommended Minimum Octane Fuel: 91-93
- NOTE: This engine may not clear your factory hood...hood modification or an aftermarket hood may be required. This engine is shipped dry without engine oil. All horsepower and torque numbers are provided by the crate engine manufacturer and are within 2% of advertised numbers.. These numbers were achieved on a professionally operated dynamometer to compensate for variables such as altitude, temperature, relative humidity, vapor pressure, and barometric pressure. The number provided were measured is at the flywheel, corrected to SAE J1349 standards, and NOT at the rear wheels. Measured rear wheel horsepower can be anywhere from 15-25% less than flywheel horsepower. Many factors will affect horsepower the horsepower numbers you will see and include exhaust header selection & diameter, ignition and fuel system components, fuel octane rating & quality, proper torque converter selection (if equipped with automatic transmission), drivetrain efficiency, etc.
An engine is only as good as the components in it and that's why BluePrint selects name brand components are used wherever possible. Each engine is assembled carefully by hand by a master engine builder. Upon completion, each engine is hot tested for leaks and dyno tested...you even receive the actual dyno test sheet of YOUR engine before shipping. BluePrint stands behind each crate engine with a 30 month 50,000 mile limited warranty.
Blueprint Pro Series 427 LS3 Small Block 750HP Supercharged Crate Engine
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 378041 |
---|---|
Alt. # | PSLS4272SCT |
Eck OEM Number | PSLS4272SCT |
Brand | N/A |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet Chevelle 300 | Series | Body | Notes | Year 1967, 1968 |
Make / Model Chevrolet Chevelle 300 Deluxe | Series | Body | Notes | Year 1967, 1968, 1969 |
Make / Model Chevrolet Chevelle Base | Series | Body | Notes | Year 1964, 1965, 1966, 1967, 1968, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Concours | Series | Body | Notes | Year 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Concours Estate | Series | Body | Notes | Year 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Deluxe | Series | Body | Notes | Year 1965, 1966, 1967, 1973 |
Make / Model Chevrolet Chevelle Greenbrier | Series | Body | Notes | Year 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes | Year 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle Nomad | Series | Body | Notes | Year 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Chevelle SS | Series | Body | Notes | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Laguna Base | Series | Body | Notes | Year 1973, 1974, 1975 |
Make / Model Chevrolet Laguna Estate | Series | Body | Notes | Year 1973 |
Make / Model Chevrolet Laguna S3 | Series | Body | Notes | Year 1975, 1976 |
Make / Model Chevrolet Laguna Type S-3 | Series | Body | Notes | Year 1974 |
Make / Model Chevrolet Malibu Base | Series | Body | Notes | Year 1964, 1965, 1966, 1967, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981 |
Make / Model Chevrolet Malibu Classic | Series | Body | Notes | Year 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983 |
Make / Model Chevrolet Malibu Classic Estate | Series | Body | Notes | Year 1975, 1976, 1978, 1979, 1980 |
Make / Model Chevrolet Malibu Classic Landau | Series | Body | Notes | Year 1976, 1977, 1978, 1979, 1980, 1981 |
Make / Model Chevrolet Malibu Classic Sport | Series | Body | Notes | Year 1977, 1979, 1980 |
Make / Model Chevrolet Malibu Estate | Series | Body | Notes | Year 1973, 1974, 1979, 1980 |
Make / Model Chevrolet Malibu Landau | Series | Body | Notes | Year 1976, 1979 |
Make / Model Chevrolet Malibu Police | Series | Body | Notes | Year 1979 |
Make / Model Chevrolet Malibu Sport | Series | Body | Notes | Year 1977, 1979, 1980 |
