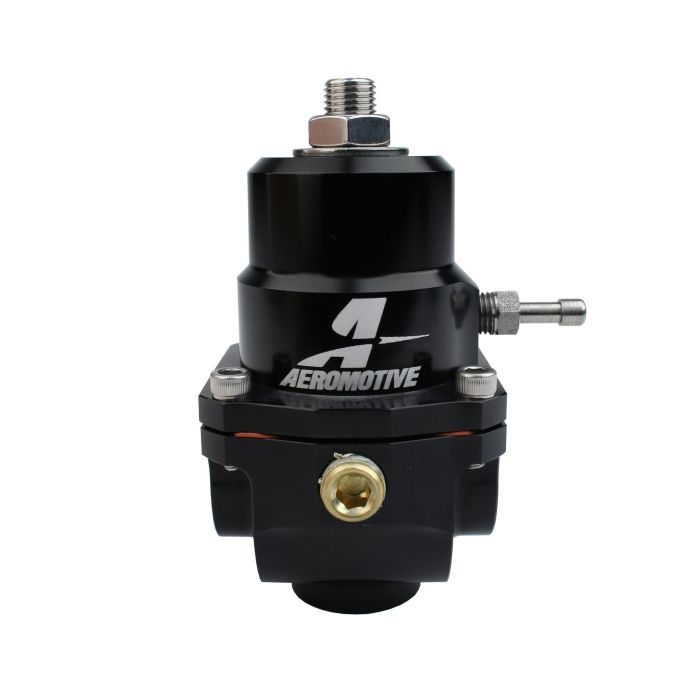

Carburetor Bypass Fuel Regulator,X1 Series,Aeromotive
Fitment
Product Details
- Base fuel pressure adjustable from 3-20 PSI.
- Vacuum/Boost reference capability.
- 1:1 rising rate for blow-through carburetors.
- Gasoline, ethanol and alcohol compatible.
- 2 – ORB -08 inlet/outlet ports on the sides.
- 1 – ORB-08 return port on the bottom port.
- 1 – 1/8″ NPT Gauge Port with plug.
- 1/16″ NPT Boost Port with 5/32″ hose barb.
- Compatible with both X1 EFI Conversion kits.
- 0.313″ bypass with matching spring and poppet.
- Handles up to 150 GPH with AN-08 return line.
- Suitable for any Aeromotive pump up to A1000
- Aeromotive #13304
From carbureted to EFI pressures, naturally aspirated or forced induction, the X1 Bypass Regulator is designed to span the entire range of low and high pressure applications providing the dependable fuel flow and pressure control you’ve come to expect from Aeromotive.
Using the X1 regulator today for a carburetor or EFI, you can easily switch platforms back and forth at will, without having to purchase another regulator. Simply get the correct conversion kit for your pump and pressure range (sold separately) and you can swap out the internal parts while leaving the regulator mounted and plumbed as is.
Replace original X1 Series regulator internals with the conversion kit of your choice (Part #s 13013, 13014, and 13015) and you have a regulator with vastly different characteristics. While versatility is one of the X1s greatest assets, it is far from the only new design feature. Utilizing larger (3) -8AN ORB inlet/outlet/return ports to accommodate increased flow, at the same time Aeromotive reduced overall size and the weight by 33% (compared to Aeromotive 13109 regulator).
The new X1 design eliminates the compromise common to other convertible regulator designs, with the optimization of all internal components including the diaphragm/poppet, spring and bypass seat, the X1 delivers all of the performance and features you expect from an application specific bypass regulator, regardless of what you decide to do with your induction system tomorow. Above and beyond the expected performance, you still have the amenities like a 1/8” NPT gauge port and 1:1 ratio boost reference port for forced induction applications.
The X1 Series provides flexible performance that grows as your fuel system grows
Carburetor Bypass Fuel Regulator,X1 Series,Aeromotive
| Base Part Number | 854581 |
|---|---|
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet 1500 | Series | Body | Notes | Year 1954 |
| Make / Model Chevrolet 3A | Series | Body | Notes | Year 1956, 1957, 1958, 1959 |
| Make / Model Chevrolet Blazer | Series | Body | Notes | Year 1969, 1970, 1971, 1972, 1973, 1974, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1998 |
| Make / Model Chevrolet C10 | Series | Body | Notes | Year 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 |
| Make / Model Chevrolet C10 Pickup | Series | Body | Notes | Year 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974 |
| Make / Model Chevrolet C15 | Series | Body | Notes | Year 1984, 1986 |
| Make / Model Chevrolet C1500 | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet C1500 Suburban | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet C20 Pickup | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974 |
| Make / Model Chevrolet C2500 | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet C2500 Suburban | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet C35 | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet C3500 | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet K10 | Series | Body | Notes | Year 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986 |
| Make / Model Chevrolet K10 Pickup | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974 |
| Make / Model Chevrolet K1500 | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet K20 Pickup | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974 |
| Make / Model Chevrolet K2500 | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet K2500 Suburban | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet K3500 | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet S10 | Series | Body | Notes | Year 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Make / Model Chevrolet Silverado | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet Suburban | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1987 |
| Make / Model Chevrolet Suburban 1500 | Series | Body | Notes | Year 1998 |
| Make / Model Chevrolet Tahoe | Series | Body | Notes | Year 1995, 1996, 1998 |
| Make / Model Chevrolet Truck | Series | Body | Notes | Year 1947, 1948, 1949, 1950, 1951, 1952, 1953, 1954, 1955, 1956, 1957, 1958, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998 |
| Make / Model GMC 1500 | Series | Body | Notes | Year 1966 |
| Make / Model GMC C15 | Series | Body | Notes | Year 1975, 1976, 1977, 1978 |
| Make / Model GMC Jimmy | Series | Body | Notes | Year 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996 |
| Make / Model GMC K15 | Series | Body | Notes | Year 1975, 1976, 1977, 1978 |
| Make / Model GMC S15 | Series | Body | Notes | Year 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990 |
| Make / Model GMC Suburban | Series | Body | Notes | Year 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967 |
| Make / Model GMC Yukon | Series | Body | Notes | Year 1992, 1993, 1994, 1995, 1996, 1997, 1998 |
