SKU
50-205161-1
Alt #:
605282B

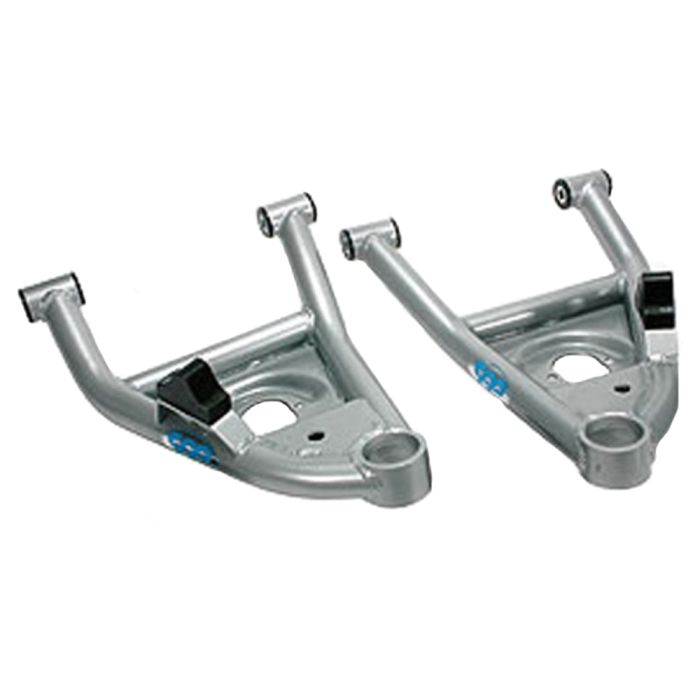

Chevelle or Malibu Suspension Front Tubular Arms, Lower, Stock Width, 1964-72
0
Reviews
Add Your Review
$549.99
PR
Fitment
Chevelle, 1964 thru 1972
View More
Product Details
CPP’s Tubular Control Arms are designed to provide full wheel travel and minimal friction. The upper control arms are made from 1-1/4” x .120” wall and the lower is 1-1/2” x .120 wall D.O.M. tubing and the pivot barrels are thick 1-1/2” .188” wall D.O.M. tubing to eliminate distortion from welding and hard use. The upper control arms allow for 5 degrees of caster. The lower arms provide increased ground clearance and allow the use of sway bars. They can be installed with either factory uppers and lowers, or as a full set. The bushings are made from self lubricating non-squeak patented plastic that will out last any rubber or urethane, and works at temperatures in excess of 400 degrees F. The Chrome-moly cross shafts and sleeves are zinc plated for lasting performance. The sleeves have an interlocking design that prevents the hardware from ever working loose. The pivots carry both forward and back loads (the original cross shaft pivot was designed to only carry a forward or back load, but not both). The control arm assemblies are a simple bolt-in installation with no modification required. They work with all factory and replacement. You can always trust Eckler's Chevelle to get your project done right!
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Designed to provide full wheel travel and minimal friction
- Can be installed with either factory uppers and lowers, or as a full set
- Made from self lubricating non-squeak patented plastic
- Work at temperatures in excess of 400 degrees F
- Simple bolt-in installation with no modification required
- Work with all factory and replacement
CPP’s Tubular Control Arms are designed to provide full wheel travel and minimal friction. The upper control arms are made from 1-1/4” x .120” wall and the lower is 1-1/2” x .120 wall D.O.M. tubing and the pivot barrels are thick 1-1/2” .188” wall D.O.M. tubing to eliminate distortion from welding and hard use. The upper control arms allow for 5 degrees of caster. The lower arms provide increased ground clearance and allow the use of sway bars. They can be installed with either factory uppers and lowers, or as a full set. The bushings are made from self lubricating non-squeak patented plastic that will out last any rubber or urethane, and works at temperatures in excess of 400 degrees F. The Chrome-moly cross shafts and sleeves are zinc plated for lasting performance. The sleeves have an interlocking design that prevents the hardware from ever working loose. The pivots carry both forward and back loads (the original cross shaft pivot was designed to only carry a forward or back load, but not both). The control arm assemblies are a simple bolt-in installation with no modification required. They work with all factory and replacement. You can always trust Eckler's Chevelle to get your project done right!
1964-72 Lower Front Tubular Arms
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 205161 |
|---|---|
| Alt. # | 605282B |
| Eck OEM Number | 6472TCA-LKS |
| Brand | Right Stuff Detailing |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet Chevelle 300 | Series | Body | Notes | Year 1967, 1968 |
| Make / Model Chevrolet Chevelle 300 | Series | Body | Notes Chevelle 300, Coupe, Two Door | Year 1968 |
| Make / Model Chevrolet Chevelle 300 | Series | Body | Notes Chevelle 300, Sedan, Four Door | Year 1965, 1966, 1967 |
| Make / Model Chevrolet Chevelle 300 | Series | Body | Notes Chevelle 300, Sedan, Two Door | Year 1965, 1966, 1967 |
| Make / Model Chevrolet Chevelle 300 | Series | Body | Notes Chevelle 300, Wagon, Four Door | Year 1965 |
| Make / Model Chevrolet Chevelle 300 | Series | Body | Notes Chevelle 300, Wagon, Two Door | Year 1965 |
| Make / Model Chevrolet Chevelle 300 Deluxe | Series | Body | Notes | Year 1967, 1968, 1969 |
| Make / Model Chevrolet Chevelle 300 Deluxe | Series | Body | Notes Chevelle 300 Deluxe, Coupe, Two Door | Year 1968, 1969 |
| Make / Model Chevrolet Chevelle 300 Deluxe | Series | Body | Notes Chevelle 300 Deluxe, Sedan, Four Door | Year 1965, 1966, 1967, 1968, 1969 |
| Make / Model Chevrolet Chevelle 300 Deluxe | Series | Body | Notes Chevelle 300 Deluxe, Sedan, Two Door | Year 1965, 1966, 1967 |
| Make / Model Chevrolet Chevelle 300 Deluxe | Series | Body | Notes Chevelle 300 Deluxe, Sports Coupe, Two Door | Year 1968, 1969 |
| Make / Model Chevrolet Chevelle 300 Deluxe | Series | Body | Notes Chevelle 300 Deluxe, Wagon, Two Door | Year 1965, 1966, 1967 |
| Make / Model Chevrolet Chevelle Base | Series | Body | Notes | Year 1964, 1965, 1966, 1967, 1968, 1970, 1971 |
| Make / Model Chevrolet Chevelle Concours | Series | Body | Notes | Year 1967, 1968, 1969, 1970, 1971 |
| Make / Model Chevrolet Chevelle Concours | Series | Body | Notes Concours Estate, Wagon, Four Door | Year 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Concours | Series | Body | Notes Concours, Wagon, Four Door | Year 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Concours Estate | Series | Body | Notes | Year 1969, 1970, 1971 |
| Make / Model Chevrolet Chevelle Deluxe | Series | Body | Notes | Year 1965, 1966, 1967 |
| Make / Model Chevrolet Chevelle Greenbrier | Series | Body | Notes | Year 1969, 1970 |
| Make / Model Chevrolet Chevelle Greenbrier | Series | Body | Notes Greenbrier, Wagon, Four Door | Year 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes | Year 1968, 1969, 1970 |
| Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes Malibu, Convertible | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes Malibu, Coupe, Two Door | Year 1964, 1965, 1966, 1967 |
| Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes Malibu, Sedan, Four Door | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes Malibu, Sedan, Two Door | Year 1968 |
| Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes Malibu, Sports Coupe, Two Door | Year 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes Malibu, Sports Sedan, Four Door | Year 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes Malibu, Wagon, Four Door | Year 1964, 1965, 1966, 1967, 1968 |
| Make / Model Chevrolet Chevelle Malibu | Series | Body | Notes Malibu, Wagon, Two Door | Year 1965, 1966 |
| Make / Model Chevrolet Chevelle Nomad | Series | Body | Notes | Year 1968, 1969, 1970 |
| Make / Model Chevrolet Chevelle Nomad | Series | Body | Notes Custom Nomad, Wagon, Four Door | Year 1968 |
| Make / Model Chevrolet Chevelle Nomad | Series | Body | Notes Nomad, Wagon, Four Door | Year 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle SS | Series | Body | Notes | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970 |
| Make / Model Chevrolet Chevelle Ss | Series | Body | Notes Chevelle, Super Sport (SS396) Convertible | Year 1966, 1967, 1968 |
| Make / Model Chevrolet Chevelle Ss | Series | Body | Notes Chevelle, Super Sport (SS396) Coupe, Two Door | Year 1966, 1967, 1968 |
| Make / Model Chevrolet Chevelle Ss | Series | Body | Notes Malibu, Super Sport (SS) Convertible | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Ss | Series | Body | Notes Malibu, Super Sport (SS) Coupe, Two Door | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Standard | Series | Body | Notes Chevelle, Sedan, Four Door | Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Standard | Series | Body | Notes Chevelle, Sedan, Two Door | Year 1964 |
| Make / Model Chevrolet Chevelle Standard | Series | Body | Notes Chevelle, Sports Coupe, Two Door | Year 1970, 1971, 1972 |
| Make / Model Chevrolet Chevelle Standard | Series | Body | Notes Chevelle, Wagon, Four Door | Year 1964 |
| Make / Model Chevrolet Chevelle Standard | Series | Body | Notes Chevelle, Wagon, Two Door | Year 1964 |
| Make / Model Chevrolet Malibu Base | Series | Body | Notes | Year 1964, 1965, 1966, 1967 |
