SKU
57-347397-1
Alt #:
57-10690

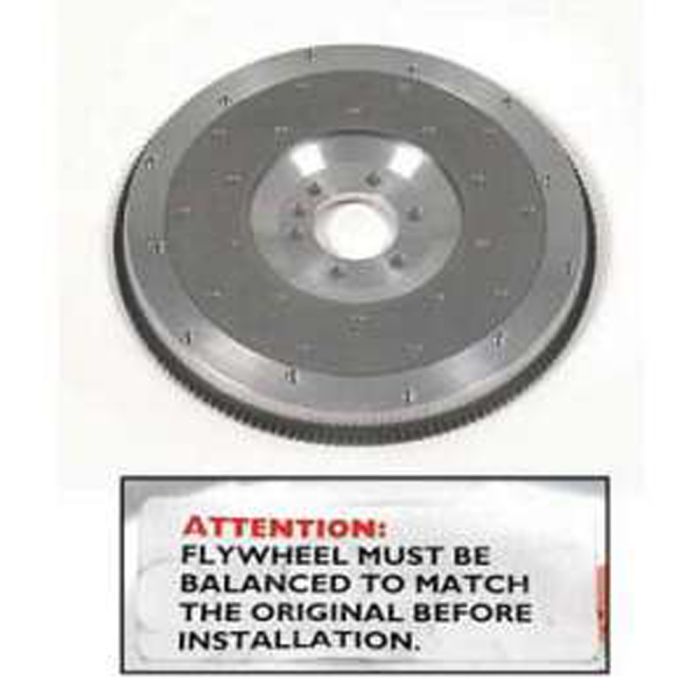

Chevy Aluminum Flywheel, For Large Bellhousing & 1987 Up Engine Conversion, 1955-1957
0
Reviews
Add Your Review
$471.99
Each
Product Details
Our aluminum flywheels for your 1955, 1956 or 1957 Chevy Bel Air, 150, 210, Nomad or wagon are made from the highest quality 6061 T6 aluminum. The material is fantastic for strength, heat dissipation and of course reduction in weight.
BODY - 6061 T6 ALUMINUM Tolerances machined to +/- .001 6061 T6 has an ultimate tensile strength of at least 42,000 psi and a yield strength of at least 35,000 psi.
RING GEAR - 1050 STEEL / HEAT TREATED for durability. The gears are heated then pressed on and secured with grade 8 button screws.
REPLACEABLE FRICTION PLATE - 1045 STEEL The friction surface we use is an incredibly strong 1045 steel. The plates are milled to meet our high specifications. With these replaceable plates there is no need to replace the entire flywheel when the clutch or flywheel is at the end of it?s life, saving time and money.
BUTTON SCREWS - GRADE 8 Increased security helping fasten the ring gear to the flywheel.
FASTENERS - MILITARY SPEC Military grade aerospace fasteners aid in pulling heat away from the clutch face. Properly spaced for form and function.
STEPPED DOWELS - STEEL Once pressure plate is installed they become locked in place. First in the industry to implement the use of stepped dowels.
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Best Quality Aluminum Flywheel
- Used To Mount Original "621" Bellhousing To Post-1987 Small Block & Big Block
- Engine Must Have One-Piece Rear Main Seal
- 168 Teeth For Internally Balanced Engines Only
- 11" Performance Clutch Components Required For Optimum Tolerances
1955-57 Fidanza Aluminum Fly Wheel
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 347397 |
---|---|
Alt. # | 57-10690 |
Eck OEM Number | 198861 |
Brand | Fidanza Flywheels |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet | Series | Body | Notes | Year 1955, 1956, 1957 |
