SKU
40-286221-1
Alt #:
517200

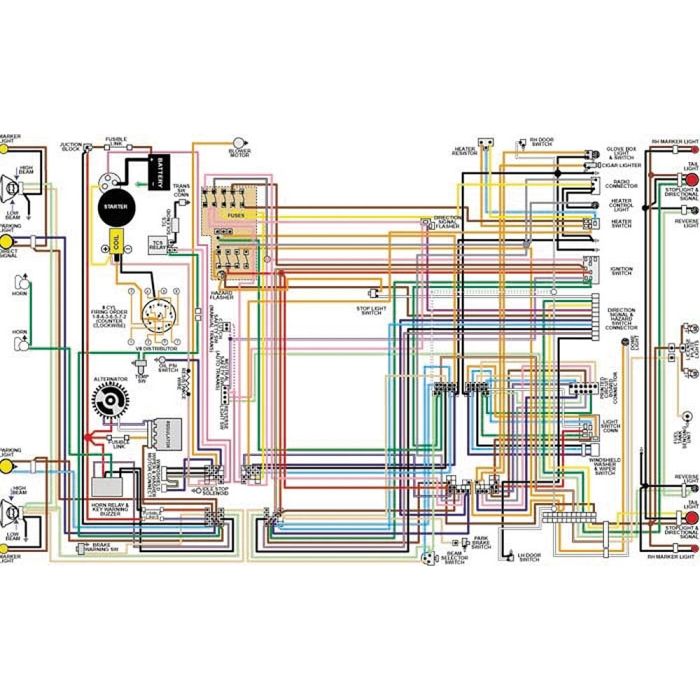

Chevy Color Laminated Wiring Diagram, 1958-1974
0
Reviews
Add Your Review
- Full Color Easy To Read
- 11" X 17" Laminated
- Covers Complete Car
Tired of those hard to read almost impossible to decipher black and white wiring diagrams copied out of 30 to 40 year old shop and repair manuals? We have the solution! All wire colors (including tracers) and component information is from the original factory service manuals. This means the wire colors on the diagram are the same as what is in your car. Diagram covers the complete basic car including: interior and exterior lights, engine & engine compartment, firewall, under dash, instrumentation, etc. All text is crystal clear and easy to read, and all colors are easy to distinguish. Diagrams are laminated in heavy plastic for durability and ease of use. (No more grease smudged expen$ive shop manuals!). Field tested and mother approved with coffee, beer, soda, all kinds of grease, dirt and paint.
Chevy Color Laminated Wiring Diagram, 1958-1974
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Hexavalent which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Hexavalent which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 286221 |
|---|---|
| Alt. # | 517200 |
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet Bel Air | Series | Body | Notes | Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Bel Air | Series | Body | Notes Bel Air, All Models | Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Biscayne | Series | Body | Notes | Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Biscayne | Series | Body | Notes Biscayne, All Models | Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Brookwood | Series | Body | Notes | Year 1958, 1959, 1960 |
| Make / Model Chevrolet Brookwood | Series | Body | Notes Brookwood, All Models | Year 1958, 1959, 1960 |
| Make / Model Chevrolet Del Ray | Series | Body | Notes | Year 1958 |
| Make / Model Chevrolet Delray | Series | Body | Notes Delray, All Models | Year 1958 |
| Make / Model Chevrolet Full Size Chevy | Series | Body | Notes Caprice, All Models | Year 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Full Size Chevy | Series | Body | Notes Estate, All Models | Year 1969 |
| Make / Model Chevrolet Full Size Chevy | Series | Body | Notes Townsman, All Models | Year 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Impala | Series | Body | Notes | Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Impala | Series | Body | Notes Impala, All Models | Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Kingswood | Series | Body | Notes | Year 1960, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Kingswood | Series | Body | Notes Kingswood, All Models | Year 1960, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Nomad | Series | Body | Notes | Year 1958, 1959, 1960 |
| Make / Model Chevrolet Nomad | Series | Body | Notes Nomad, All Models | Year 1958, 1959, 1960 |
| Make / Model Chevrolet Parkwood | Series | Body | Notes | Year 1959, 1960 |
| Make / Model Chevrolet Parkwood | Series | Body | Notes Parkwood, All Models | Year 1959, 1960 |
| Make / Model Chevrolet Yeoman | Series | Body | Notes | Year 1958 |
| Make / Model Chevrolet Yeoman | Series | Body | Notes Yeoman, All Models | Year 1958 |
