SKU
61-303769-1
Alt #:
61-00253

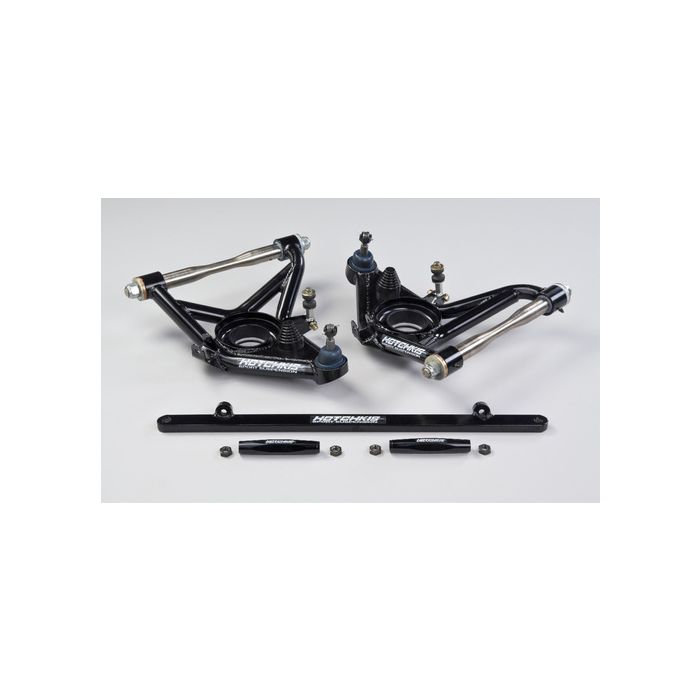

Chevy & GMC Truck Lower Control Arms, With Ball Joints, Tubular, C-10, Hotchkis, 1963-1972
0
Reviews
Add Your Review
$1,923.08
Kit
Product Details
Install the Hotchkis Sport Suspension Tubular Lower A-Arms on your 63-72 C-10 Pickup and gain vastly increased handling and control. These 100% TIG welded; control arms are packed with features to make your truck handle like a G-machine. Completely re-engineered these arms extend the wheelbase 1.8? and add up to +9° Caster for precise handling and maximum front end grip. The arms also feature CNC machined inset spring cups with polyurethane spring seats, and a Hotchkis exclusive, shim system that allows fine tuning the ride height up or in ¼? increments for different wheel/tire combinations or motors. 4130 Chromoly cross shafts are also included along with a bronze rear bushing for maximum heat resistance and smooth operation. The front bushing is smooth operating Delrin and is greasable for maximum service life. To control bump steer we?ve included a specially engineered center link assembly and heavy duty tie rod sleeves. High articulation heim joint end links are included, as well as reinforced shock mounts and heavy duty ball joints. The arm is finished in gloss black powdercoat and comes complete and ready to install. You won?t find a better quality, more thoroughly engineered arm from any other source. For even greater handling improvements combine with the Hotchkis Sport Suspension Tubular Upper A?Arms. PROUDLY MADE IN THE USA.
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Redesigned To Increase Wheelbase By 1.8? And Add Up To +9° Caster
- 100% TIG Welded 1.5? Tubular Steel Construction
- CNC Machined Inset Spring Cup With Polyurethane Coil Spring Isolators
- Precision Aluminum Ride Height Adjustment Shims And Gusset Reinforced Shock Mounts
- High Quality Lower Ball Joints Installed
- Includes ?Rod End? Style End Links
- Includes Fabricated Center Link And Heavy Duty Tie Rod Sleeves That Eliminate Bump Steer
- Semi-Gloss Black Powder Coat finish
- Made in the USA
1963-72 Hotchkis Tubular Lower Control Arms With Ball Joints
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 303769 |
---|---|
Alt. # | 61-00253 |
Eck OEM Number | 11390L |
Brand | Hotchkis Sport Suspension |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet | Series | Body | Notes | Year 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
Make / Model Chevrolet Truck | Series | Body | Notes | Year 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
