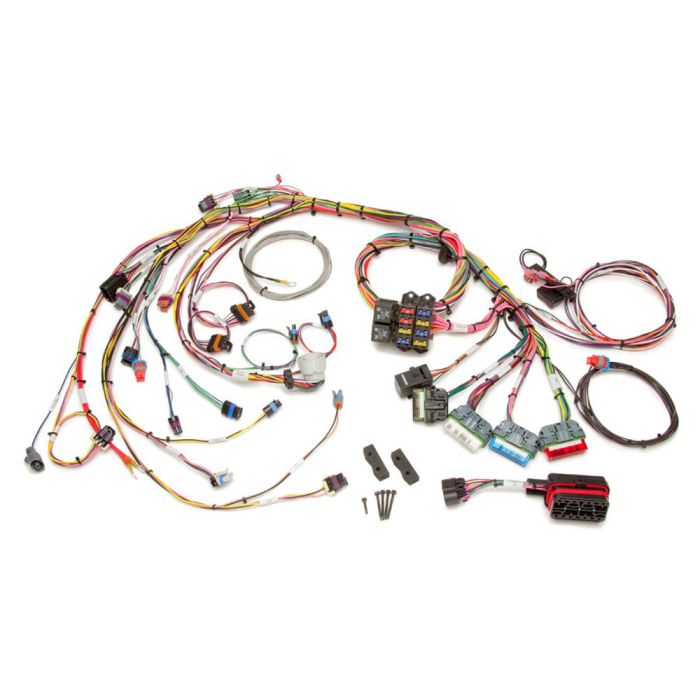

Chevy-GMC Truck Painless Performance 1996-1999 Vortec Swap Harness, 5.0L-5.7L, Extended Length

• Standalone harness-not intended to replace the OEM engine wiring.  Standalone harnesses are intended to run the designated engine & transmission only, generally when swapped into another vehicle.
• Kit includes:
• All new fuel injection harness with OEM fitment connectors and harness breakouts
• OBDII connector, mounting bracket and check engine light
• Crimp on terminals and rubber grommet
• Mounting hardware
• Requires ECM 16244210 or 16229684 with V8 programing
• View instructional video here

This harness is designed for 1996-1999 5.0L & 5.7L Vortec CMFI engines with a 4L60E or 4L80E transmission. These engines were found in 1996-1999 GM full-size trucks, vans, and SUVs. Harnesses do not include connections for the rear O2 sensors or fuel tank pressure sensor but are available separate. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation. NOTE:This harness is standalone and is not intended to replace the OEM engine wiring.  Standalone harnesses are intended to run the designated engine & transmission only, generally when swapped into another vehicle. This harness also requires the following mating parts; ECM 16244210 or 16229684 with V8 programing.

1996-1999 GM Vortec 5.0 & 5.7L V8 (CMFI) Harness
