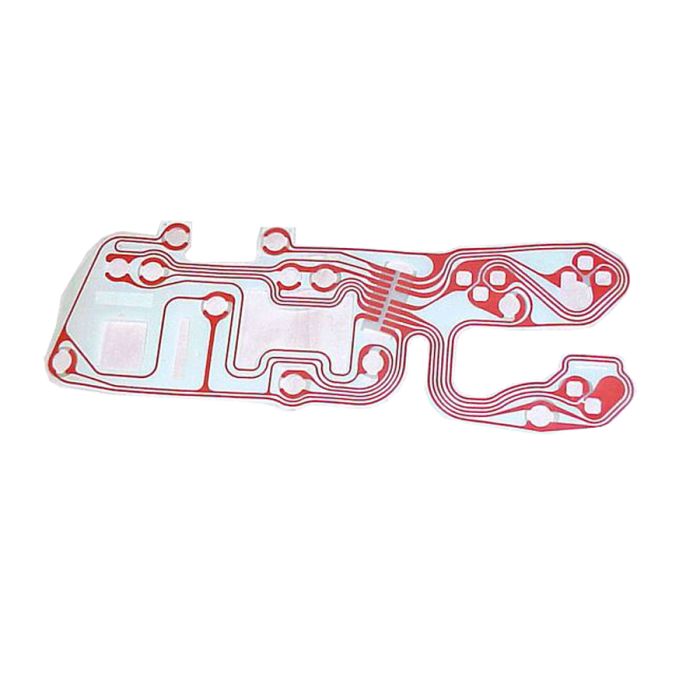

Chevy Truck Instrument Panel Printed Circuit, With Factory Gauges And Factory Tachometer, 1976
Product Details
- Highest Quality Reproduction Printed Circuit
- Located Behind Dash Carrier
- For Trucks With Factory Gauges And Factory Tach
- Correct Plastic Unit With Flat Copper Photo Etched Wiring
- Replaces Commonly Burned Or Broken Originals
- Essential For Proper Gauge And Dash Light Operation
- Replaces GM Part Number 8917776
Chevy Trucks after 1966 were equipped from the factory with printed circuits behind the instrument cluster instead of a harness to operate the gauges and lights. Not only was it more cost effective for the factory to use a printed circuit, but it saves space, weight and reduces the rats nest of wires typically found behind the clusters of earlier GM trucks. Your 1976 Chevy Truck printed circuit is simply a piece of plastic with conductive copper material embedded in it. Unlike solid hard computer printed circuit boards, these boards are flexible, translucent plastic sheets which operate in the same fashion by conducting electricity to the different dashboard functions. This Chevrolet Truck printed circuit can act as a fusible link when using the wrong fuses in your fuse block leading to damaging and costly breaks in the printed circuit. If your Truck gauges fail or the instrument lighting seems abnormally dim, your printed circuit may have gone bad. To easily check this pull out your Chevy Pickup, Blazer or Suburban's printed circuit and hold it up to a light. You should be able to easily see the break. Be careful; your old flexible plastic board might be brittle and rough handling may lead to more substantial damage. Eckler's has sold thousands of GM printed circuits over the years. Now Eckler's Classic Chevy Trucks has worked closely with a manufacturer to make sure all possible combinations of printed circuits are available for your classic 1976 Chevrolet Truck.
Dash Gauge Printed Circuit For Chevy Trucks With Factory Gauges And Factory Tachometer, 1976
Base Part Number | 329015 |
---|---|
Alt. # | 61-12381 |
Brand | N/A |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet | Series | Body | Notes | Year 1976 |
Make / Model Chevrolet Blazer | Series | Body | Notes | Year 1976 |
Make / Model Chevrolet Blazer | Series | Body | Notes Blazer, Sports Utility | Year 1976 |
Make / Model Chevrolet Truck | Series | Body | Notes Suburban, Sports Utility | Year 1976 |
Make / Model Chevrolet Truck | Series | Body | Notes Truck, Pickup | Year 1976 |
