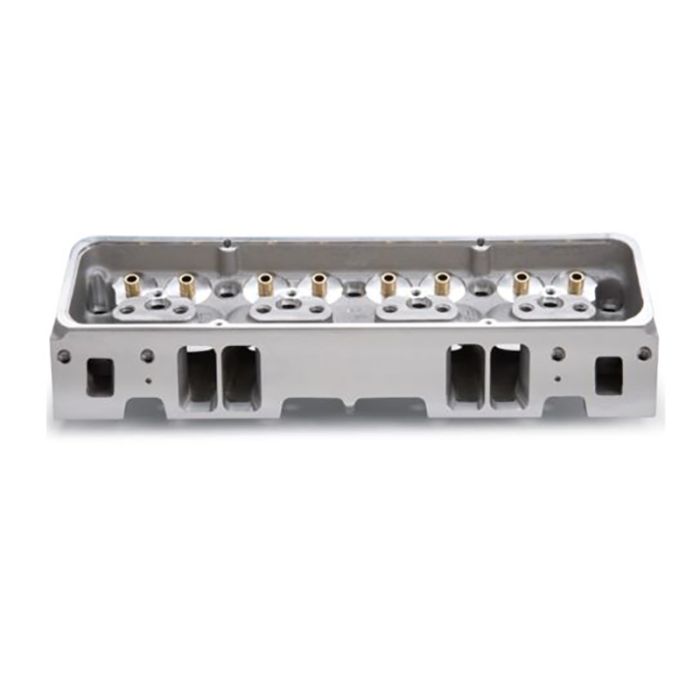

Edelbrock E-TEC 170 Cylinder Head for Small Block Chevy
Fitment
Product Details
- Small Block Chevy 302-400ci
- Equipped With Springs For Hydraulic Roller Camshaft
- Port Volumes: 170cc/70cc
- Valve Size: 1.94"/1.55"
- Combustion Chamber Size: 64cc
- Assembled, Sold Individually
Edelbrock E-Tec heads are replacements for 302, 327, 350 & 400 c.i.d. S/B Chevy engines with ''Vortec-style'' manifolds. They feature an LT1-style raised runner intake port design for increased air-flow and ultimate performance. A unique combustion chamber design positions the spark plug closer to the center of the cylinder, promoting a more efficient combustion resulting in more power. These heads include an adjustable rocker stud and guide plate set-up for use with adjustable rockers or washers to properly position the stud height to accommodate factory style self-aligning rocker arms. They have 20% more exhaust flow than cast iron Vortec heads, great performance up to 6000 rpm and can produce 9.5:1 compression with stock pistons in 350 cubic-inch engines. RPM E-Tec heads are dual-drilled and will accept 1987-95 centerbolt and/or 1986 & prior perimeter flange mount valve covers and most stock exhaust manifolds. E-Tec 170 heads are 50-state street legal.
Installation Note: To use stock rockers on S/B Chevy heads, .100'' longer than stock pushrods are required. S/B Chevy heads may not be used on engines with less than 4" bore (262, 265, 283, 305, 307 c.i.d.) except with cams having less than .450'' valve lift.
Tech Tip: To gain more spark plug clearance, Edelbrock recommends using Champion RC Series plugs such as the RC12YC. They are 0.230'' shorter than a conventional spark plug and have a 5/8'' hex for easier access
Edelbrock E-TEC 170 Cylinder Head for Small Block Chevy
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 394992 |
|---|---|
| Eck OEM Number | 60975 |
| Brand | Edelbrock |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet C10 Pickup Base | Series | Body | Notes | Year 1961 |
| Make / Model Chevrolet C20 Pickup Base | Series | Body | Notes | Year 1960, 1961 |
| Make / Model Chevrolet K10 Pickup Base | Series | Body | Notes | Year 1960 |
| Make / Model Chevrolet K20 Pickup Base | Series | Body | Notes | Year 1960 |
| Make / Model Chevrolet Suburban Base | Series | Body | Notes | Year 1960 |
| Make / Model Chevrolet Truck | Series | Body | Notes | Year 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026, 2027, 2028, 2029, 2030, 2031, 2032, 2033, 2034, 2035, 2036, 2037, 2038, 2039, 2040, 2041, 2042, 2043, 2044, 2045, 2046, 2047, 2048, 2049, 2050, 2051, 2052, 2053, 2054, 2055, 2056, 2057, 2058, 2059, 2060, 2061, 2062, 2063, 2064, 2065, 2066, 2067, 2068, 2069, 2070, 2071, 2072, 2073, 2074, 2075, 2076, 2077, 2078, 2079, 2080, 2081, 2082, 2083, 2084, 2085, 2086, 2087, 2088, 2089, 2090, 2091, 2092, 2093, 2094, 2095, 2096, 2097, 2098, 2099, 2100 |
| Make / Model Chevrolet Truck Base | Series | Body | Notes | Year 1958, 1960 |
