El Camino Color Laminated Wiring Diagram, 1964-1975
0
Reviews
Add Your Review
- Full Color Easy To Read
- 11" X 17" Laminated
- Covers Complete Car

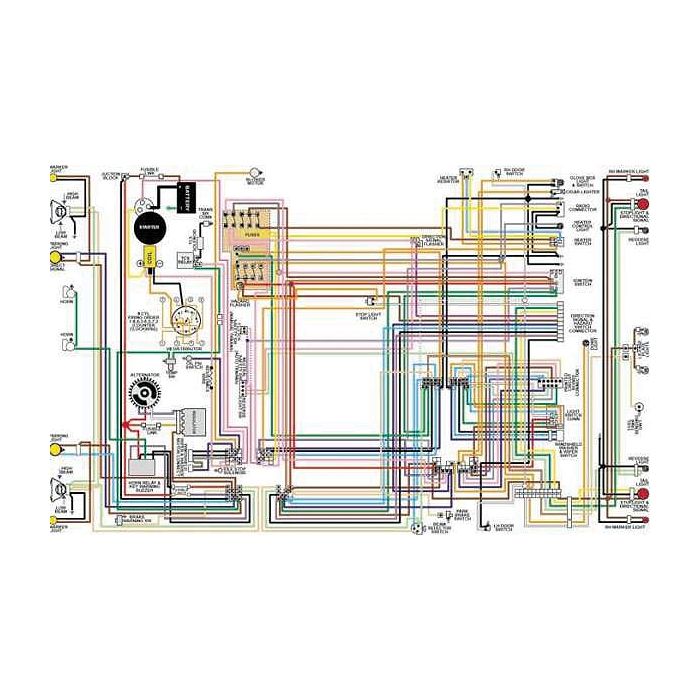

Tired of those hard to read almost impossible to decipher black and white wiring diagrams copied out of 30 to 40 year old shop and repair manuals? We have the solution! All wire colors (including tracers) and component information is from the original factory service manuals. This means the wire colors on the diagram are the same as what is in your car. Diagram covers the complete basic car including: interior and exterior lights, engine & engine compartment, firewall, under dash, instrumentation, etc. All text is crystal clear and easy to read, and all colors are easy to distinguish. Diagrams are laminated in heavy plastic for durability and ease of use. (No more grease smudged expen$ive shop manuals!). Field tested and mother approved with coffee, beer, soda, all kinds of grease, dirt and paint.
