SKU
40-385126-1
FiTech Inline Frame Mount Fuel Delivery Kit, 255LPH
0
Reviews
Add Your Review
$297.00
Kit
Product Details
SPECIFICATIONS:
Quality Level: High Performance Upgrade
Max Flywheel Horsepower: 625
Supports Forced Induction & Nitrous: Yes
Fuel Pump Size: 255LPH
Fuel Line Diameter: 3/8 Inch
Fuel Line Length: 20 Feet
Fuel Pump Inlet / Outlet: -8 AN Inlet & -6 AN Outlet

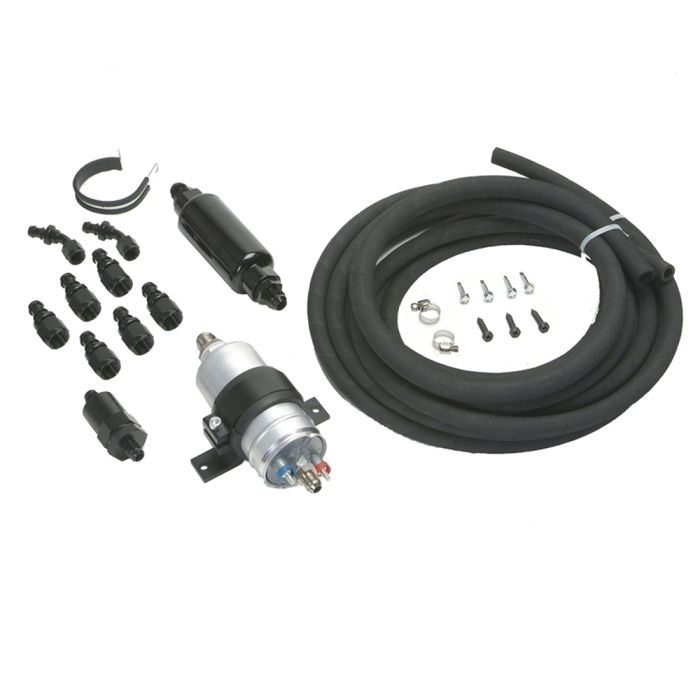

What's In The Box: 255LPH Fuel Pump, Pre & Post Billet Aluminum Fuel Filters, Push Lock Hose Ends, Billet Fuel Pump, Clamp & 25 Feet Of EFI Rated Hose
Where It's Made: China
Manufacturer Limited Warranty: 1-Year All Parts
Product Weight: 9 lbs.
Product Dimensions: 11 x 8 x 12
Approx. Installation Time: 2-3 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
Installation Difficulty: Difficult, Seek Professional Installation
50-State Emission Legal: NoThis kit features a 255 L/PH external inline fuel pump capable of handling up to 600 HP. Select this option for your fuel delivery system and you will have a 255 L/PH inline high pressure, high volume EFI pump that will provide enough fuel delivery for up to 600 HP. Kit also includes fuel lines, fittings and two billet fuel filters and enough premium quality hose for an inlet and return line. The filters include a 100 micron pre-filter and a 30 micron post filter. Note that when using this pump a return line to the fuel tank is required.
Availability:
In Stock - 3-5 Day Delivery
- Use This Kit With Any Aftermarket EFI Conversion Kit That Supports 600-625HP
- Kit Includes A 255LPH Fuel Pump, Pre & Post Fuel Filters, Necessary Hose Ends, Billet Fuel Pump, Clamp & 25 Feet Of EFI Rated Hose
- Notes: Mounts Your Fuel Pump Externally Along The Frame Rail
SPECIFICATIONS:
- Quality Level: High Performance Upgrade
- Max Flywheel Horsepower: 625
- Supports Forced Induction & Nitrous: Yes
- Fuel Pump Size: 255LPH
- Fuel Line Diameter: 3/8 Inch
- Fuel Line Length: 20 Feet
- Fuel Pump Inlet / Outlet: -8 AN Inlet & -6 AN Outlet
- What's In The Box: 255LPH Fuel Pump, Pre & Post Billet Aluminum Fuel Filters, Push Lock Hose Ends, Billet Fuel Pump, Clamp & 25 Feet Of EFI Rated Hose
- Where It's Made: China
- Manufacturer Limited Warranty: 1-Year All Parts
- Product Weight: 9 lbs.
- Product Dimensions: 11 x 8 x 12
- Approx. Installation Time: 2-3 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
- Installation Difficulty: Difficult, Seek Professional Installation
- 50-State Emission Legal: No
This kit features a 255 L/PH external inline fuel pump capable of handling up to 600 HP. Select this option for your fuel delivery system and you will have a 255 L/PH inline high pressure, high volume EFI pump that will provide enough fuel delivery for up to 600 HP. Kit also includes fuel lines, fittings and two billet fuel filters and enough premium quality hose for an inlet and return line. The filters include a 100 micron pre-filter and a 30 micron post filter. Note that when using this pump a return line to the fuel tank is required.
FiTech Inline Frame Mount Fuel Delivery Kit, 255LPH
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 385126 |
|---|---|
| Eck OEM Number | 50001 |
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model | Series | Body | Notes | Year 0 |
| Make / Model Chevrolet Bel Air Base | Series | Body | Notes | Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1981 |
| Make / Model Chevrolet Biscayne Base | Series | Body | Notes | Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Biscayne Fleetmaster | Series | Body | Notes | Year 1960 |
| Make / Model Chevrolet Caprice Base | Series | Body | Notes | Year 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1974, 1981, 1985 |
| Make / Model Chevrolet Caprice Classic | Series | Body | Notes | Year 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985 |
| Make / Model Chevrolet Caprice Classic Estate | Series | Body | Notes | Year 1976, 1977, 1978, 1981, 1982 |
| Make / Model Chevrolet Caprice Classic Landau | Series | Body | Notes | Year 1976, 1977, 1978, 1979, 1980, 1981 |
| Make / Model Chevrolet Caprice Classic Sport | Series | Body | Notes | Year 1975, 1976, 1979, 1980 |
| Make / Model Chevrolet Caprice Estate | Series | Body | Notes | Year 1973, 1974 |
| Make / Model Chevrolet Caprice Estate Wagon | Series | Body | Notes | Year 1975 |
| Make / Model Chevrolet Caprice Landau | Series | Body | Notes | Year 1979 |
| Make / Model Chevrolet Estate Base | Series | Body | Notes | Year 1969, 1970 |
| Make / Model Chevrolet Impala Base | Series | Body | Notes | Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985 |
| Make / Model Chevrolet Impala Custom | Series | Body | Notes | Year 1975, 1976, 1977 |
| Make / Model Chevrolet Impala Custom Landau | Series | Body | Notes | Year 1976 |
| Make / Model Chevrolet Impala Estate | Series | Body | Notes | Year 1981, 1982 |
| Make / Model Chevrolet Impala Landau | Series | Body | Notes | Year 1977, 1978, 1979 |
| Make / Model Chevrolet Impala S | Series | Body | Notes | Year 1976 |
| Make / Model Chevrolet Impala Sport | Series | Body | Notes | Year 1975, 1976, 1979, 1980 |
| Make / Model Chevrolet Impala SS | Series | Body | Notes | Year 1964, 1965, 1966, 1967 |
| Make / Model Chevrolet Kingswood Base | Series | Body | Notes | Year 1959, 1960, 1969, 1970, 1971, 1972, 1973 |
| Make / Model Chevrolet Kingswood Estate | Series | Body | Notes | Year 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Nomad Base | Series | Body | Notes | Year 1958, 1959, 1960 |
| Make / Model Chevrolet Parkwood Base | Series | Body | Notes | Year 1959, 1960 |
| Make / Model Chevrolet Townsman Base | Series | Body | Notes | Year 1969, 1970, 1971, 1972 |
| Make / Model Chevrolet Yeoman Base | Series | Body | Notes | Year 1958 |
