SKU
50-385126-1

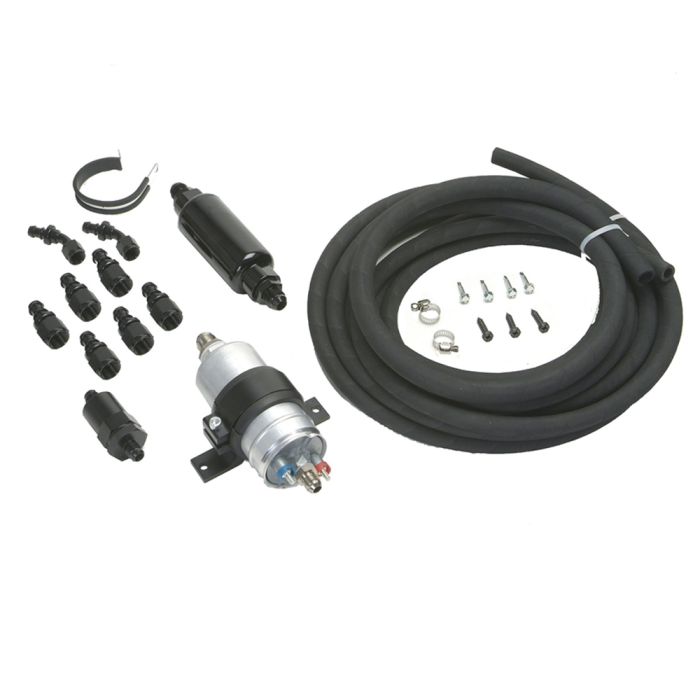

FiTech Inline Frame Mount Fuel Delivery Kit, 255LPH

0% of 100
0  Reviews Add Your Review
$297.00 Kit
Product Details
SPECIFICATIONS: Quality Level:  High Performance Upgrade Max Flywheel Horsepower:  625 Supports Forced Induction & Nitrous:  Yes Fuel Pump Size:  255LPH  Fuel Line Diameter:  3/8 Inch  Fuel Line Length:  20 Feet  Fuel Pump Inlet / Outlet:  -8 AN Inlet & -6 AN Outlet What's In The Box:  255LPH Fuel Pump, Pre & Post Billet Aluminum Fuel Filters, Push Lock Hose Ends, Billet Fuel Pump, Clamp & 25 Feet Of EFI Rated Hose  Where It's Made: China Manufacturer Limited Warranty:  1-Year All Parts Product Weight: 9 lbs. Product Dimensions:  11 x 8 x 12  Approx. Installation Time:   2-3 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer Installation Difficulty:   Difficult, Seek Professional Installation 50-State Emission Legal:  NoThis kit features a 255 L/PH external inline fuel pump capable of handling up to 600 HP. Select this option for your fuel delivery system and you will have a 255 L/PH inline high pressure, high volume EFI pump that will provide enough fuel delivery for up to 600 HP. Kit also includes fuel lines, fittings and two billet fuel filters and enough premium quality hose for an inlet and return line. The filters include a 100 micron pre-filter and a 30 micron post filter. Note that when using this pump a return line to the fuel tank is required.
Availability: In Stock - 3-5 Day Delivery
  • Use This Kit With Any Aftermarket EFI Conversion Kit That Supports 600-625HP
  • Kit Includes A 255LPH Fuel Pump, Pre & Post Fuel Filters, Necessary Hose Ends, Billet Fuel Pump, Clamp & 25 Feet Of EFI Rated Hose
  • Notes:  Mounts Your Fuel Pump Externally Along The Frame Rail

SPECIFICATIONS:
  • Quality Level:  High Performance Upgrade
  • Max Flywheel Horsepower:  625
  • Supports Forced Induction & Nitrous:  Yes
  • Fuel Pump Size:  255LPH
  • Fuel Line Diameter:  3/8 Inch
  • Fuel Line Length:  20 Feet
  • Fuel Pump Inlet / Outlet:  -8 AN Inlet & -6 AN Outlet
  • What's In The Box:  255LPH Fuel Pump, Pre & Post Billet Aluminum Fuel Filters, Push Lock Hose Ends, Billet Fuel Pump, Clamp & 25 Feet Of EFI Rated Hose
  • Where It's Made: China
  • Manufacturer Limited Warranty:  1-Year All Parts
  • Product Weight: 9 lbs.
  • Product Dimensions:  11 x 8 x 12
  • Approx. Installation Time:   2-3 Hours, Experienced Mechanic Times Quoted, Yours Will Take Longer
  • Installation Difficulty:   Difficult, Seek Professional Installation
  • 50-State Emission Legal:  No

This kit features a 255 L/PH external inline fuel pump capable of handling up to 600 HP. Select this option for your fuel delivery system and you will have a 255 L/PH inline high pressure, high volume EFI pump that will provide enough fuel delivery for up to 600 HP. Kit also includes fuel lines, fittings and two billet fuel filters and enough premium quality hose for an inlet and return line. The filters include a 100 micron pre-filter and a 30 micron post filter. Note that when using this pump a return line to the fuel tank is required.

FiTech Inline Frame Mount Fuel Delivery Kit, 255LPH


Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
More Information
Base Part Number 385126
Eck OEM Number 50001
Brand N/A
Make / Model Series Body Notes Year
Make / Model Series Body Notes Year 0
Make / Model Chevrolet Chevelle 300 Series Body Notes Year 1967, 1968
Make / Model Chevrolet Chevelle 300 Deluxe Series Body Notes Year 1967, 1968, 1969
Make / Model Chevrolet Chevelle Base Series Body Notes Year 1964, 1965, 1966, 1967, 1968, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Concours Series Body Notes Year 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Concours Estate Series Body Notes Year 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Deluxe Series Body Notes Year 1965, 1966, 1967, 1973
Make / Model Chevrolet Chevelle Greenbrier Series Body Notes Year 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Malibu Series Body Notes Year 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle Nomad Series Body Notes Year 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Chevelle SS Series Body Notes Year 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Malibu Base Series Body Notes Year 1964, 1965, 1966, 1967, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981
Make / Model Chevrolet Malibu Classic Series Body Notes Year 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983
Make / Model Chevrolet Malibu Classic Estate Series Body Notes Year 1975, 1976, 1978, 1979, 1980
Make / Model Chevrolet Malibu Classic Landau Series Body Notes Year 1976, 1977, 1978, 1979, 1980, 1981
Make / Model Chevrolet Malibu Classic Sport Series Body Notes Year 1977, 1979, 1980
Make / Model Chevrolet Malibu Estate Series Body Notes Year 1973, 1974, 1979, 1980
Make / Model Chevrolet Malibu Landau Series Body Notes Year 1976, 1979
Make / Model Chevrolet Malibu Police Series Body Notes Year 1979
Make / Model Chevrolet Malibu Sport Series Body Notes Year 1977, 1979, 1980
