SKU
40-168127-1
Alt #:
562888

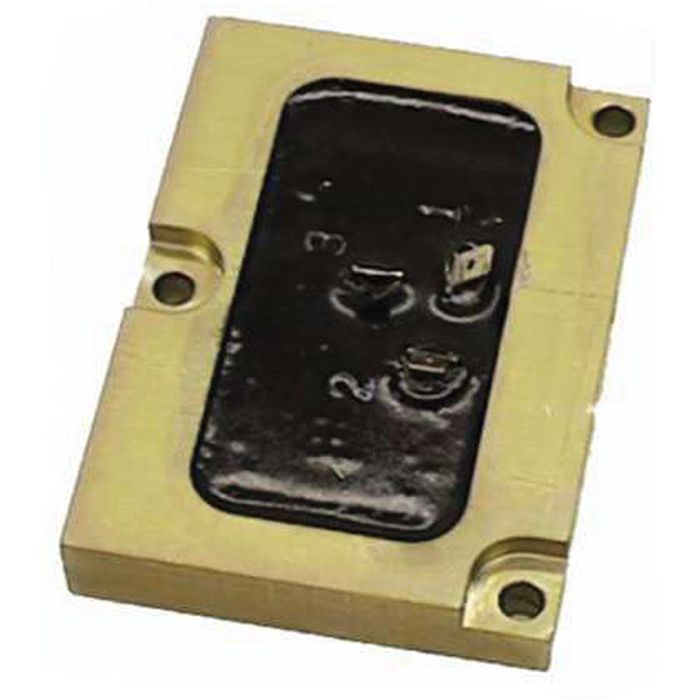

Full Size Chevy Transistor Ignition Module, 1964-1967
0
Reviews
Add Your Review
$188.10
Each
Product Details
Transistorized Ignitions (TI) also known as Delcotron Transistor Control Magnetic Pulse Ignition Systems were available for the full size Chevy from the Heavy Duty (read RACE) Parts catalog over the counter at your local GM dealership. These special transistor controlled ignition systems were developed for high performance and racing use to replace the traditional point-fired ignition system that came standard on most vehicles which were later replaced with the first HEI optional distributors in 1970. These transistorized ignitions were still used as the standard in heavy duty, high performance Chevrolet ignition systems until its demise from racing in the early 1980’s. TI systems work by overcoming the common problems with points-style ignition systems. At high RPM, points systems can “bounce” or skip unless replaced with high tension point set limiting the rev capability of the engine. Replacing the factory points with high tension points often wore the rubbing block at a faster rate resulting in increased dwell and retarded spark. The problem became critical when used on endurance type events such as NASCAR or Trans Am racing. TI systems overcome both problems creating a reliable ignition system up to 10,000 RPM or more. To identify if you have a TI system in your car you will have a “finned” amplifier box and bracket attached to the hood latch support, magnetic pulse distributor and special wiring harness.
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Internal New Module Designed To Work With Original TI Coil Or Later Model Replacement Coils
Transistorized Ignitions (TI) also known as Delcotron Transistor Control Magnetic Pulse Ignition Systems were available for the full size Chevy from the Heavy Duty (read RACE) Parts catalog over the counter at your local GM dealership. These special transistor controlled ignition systems were developed for high performance and racing use to replace the traditional point-fired ignition system that came standard on most vehicles which were later replaced with the first HEI optional distributors in 1970. These transistorized ignitions were still used as the standard in heavy duty, high performance Chevrolet ignition systems until its demise from racing in the early 1980’s. TI systems work by overcoming the common problems with points-style ignition systems. At high RPM, points systems can “bounce” or skip unless replaced with high tension point set limiting the rev capability of the engine. Replacing the factory points with high tension points often wore the rubbing block at a faster rate resulting in increased dwell and retarded spark. The problem became critical when used on endurance type events such as NASCAR or Trans Am racing. TI systems overcome both problems creating a reliable ignition system up to 10,000 RPM or more. To identify if you have a TI system in your car you will have a “finned” amplifier box and bracket attached to the hood latch support, magnetic pulse distributor and special wiring harness.
1964-68 Transistor Ignition Module
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Phthalates which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Phthalates which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 168127 |
---|---|
Alt. # | 562888 |
Eck OEM Number | 32270 |
Brand | American Autowire/Factory Fit |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet | Series | Body | Notes | Year 1967 |
Make / Model Chevrolet Bel Air | Series | Body | Notes | Year 1964, 1965, 1966, 1967 |
Make / Model Chevrolet Bel Air | Series | Body | Notes Bel Air, All Models | Year 1964, 1965, 1966, 1967 |
Make / Model Chevrolet Biscayne | Series | Body | Notes | Year 1964, 1965, 1966, 1967 |
Make / Model Chevrolet Biscayne | Series | Body | Notes Biscayne, All Models | Year 1964, 1965, 1966, 1967 |
Make / Model Chevrolet Full Size Chevy | Series | Body | Notes Caprice, All Models | Year 1966, 1967 |
Make / Model Chevrolet Impala | Series | Body | Notes | Year 1964, 1965, 1966, 1967 |
Make / Model Chevrolet Impala | Series | Body | Notes Impala, All Models | Year 1964, 1965, 1966, 1967 |
