SKU
40-139157-1
Alt #:
517127

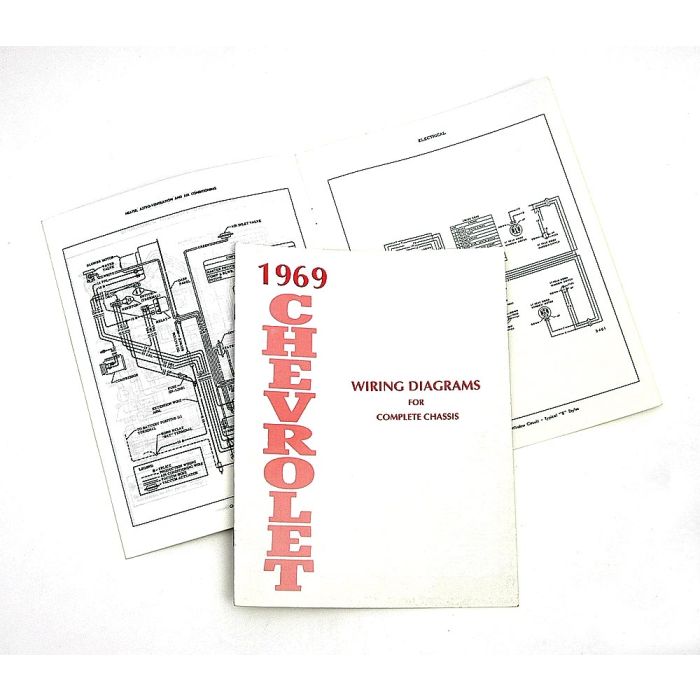

Full Size Chevy Wiring Harness Diagram Manual, 1969
0
Reviews
Add Your Review
$9.99
Each
Fitment
Bel Air, 1969 thru 1969
View More
Product Details
This handy diagram manual includes the basic wiring diagrams as well as wiring for some optional equipment. Englarged size makes them ideal for easy-to-read troubleshooting. 8-1/2" x 11", saddle stitched.
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Reproduced Diagrams From Factory Assembly Manual
- Includes Wire Color Codes
- Covers Some But Not All Optional Accessories
1969 Wiring Harness Diagram Manual
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Hexavalent which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Hexavalent which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
| Base Part Number | 139157 |
|---|---|
| Alt. # | 517127 |
| Eck OEM Number | 69-WDP |
| Brand | N/A |
| Make / Model | Series | Body | Notes | Year |
|---|---|---|---|---|
| Make / Model Chevrolet Bel Air | Series | Body | Notes | Year 1969 |
| Make / Model Chevrolet Bel Air | Series | Body | Notes Bel Air, All Models | Year 1969 |
| Make / Model Chevrolet Bel Air | Series | Body | Notes Townsman, All Models | Year 1969 |
| Make / Model Chevrolet Biscayne | Series | Body | Notes | Year 1969 |
| Make / Model Chevrolet Biscayne | Series | Body | Notes Biscayne, All Models | Year 1969 |
| Make / Model Chevrolet Full Size Chevy | Series | Body | Notes Caprice, All Models | Year 1969 |
| Make / Model Chevrolet Full Size Chevy | Series | Body | Notes Estate, All Models | Year 1969 |
| Make / Model Chevrolet Impala | Series | Body | Notes | Year 1969 |
| Make / Model Chevrolet Impala | Series | Body | Notes Impala, All Models | Year 1969 |
| Make / Model Chevrolet Impala | Series | Body | Notes Kingswood, All Models | Year 1969 |
