Full Size Chevy Wiring Harness Diagram Manual, 1970
0
Reviews
Add Your Review
$7.99
Each
Fitment
Bel Air, 1970 thru 1970
View More
Product Details

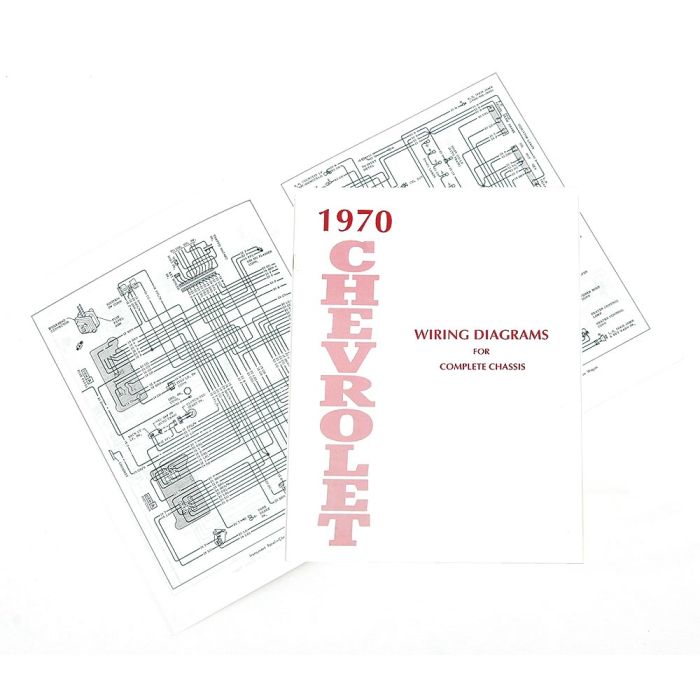

This handy diagram manual includes the basic wiring diagrams as well as wiring for some optional equipment. Englarged size makes them ideal for easy-to-read troubleshooting. 8-1/2" x 11", saddle stitched.
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Reproduced Diagrams From Factory Assembly Manual
- Includes Wire Color Codes
- Covers Some But Not All Optional Accessories
1970 Wiring Harness Diagram Manual
