SKU
40-139160-1
Alt #:
517130

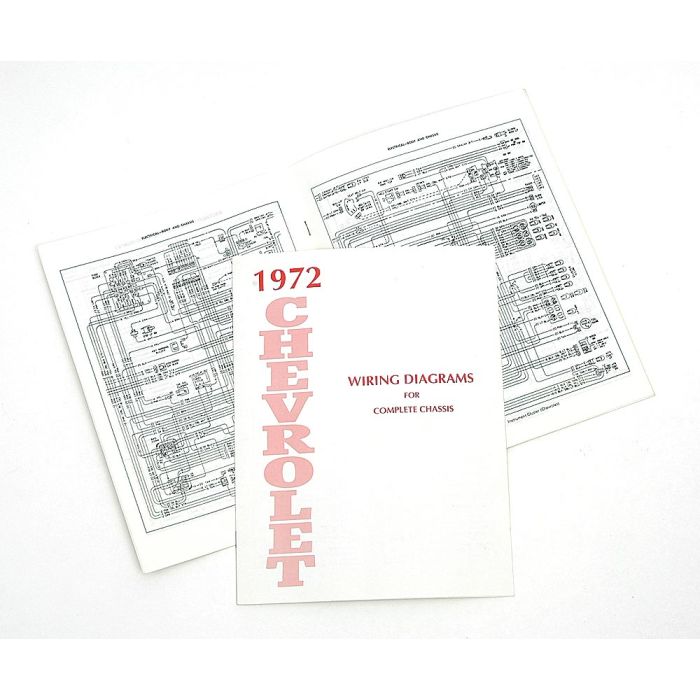

Full Size Chevy Wiring Harness Diagram Manual, 1972
0
Reviews
Add Your Review
$9.99
Each
Fitment
Bel Air, 1972 thru 1972
View More
Product Details
This handy diagram manual includes the basic wiring diagrams as well as wiring for some optional equipment. Englarged size makes them ideal for easy-to-read troubleshooting. 8-1/2" x 11", saddle stitched.
Availability:
Ships Direct from Manufacturer - 2-3 Week Delivery
- Reproduced Diagrams From Factory Assembly Manual
- Includes Wire Color Codes
- Covers Some But Not All Optional Accessories
1972 Wiring Harness Diagram Manual
Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Hexavalent which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
WARNING This product can expose you to chemicals including Hexavalent which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
Base Part Number | 139160 |
---|---|
Alt. # | 517130 |
Eck OEM Number | 72-WDP |
Brand | N/A |
Make / Model | Series | Body | Notes | Year |
---|---|---|---|---|
Make / Model Chevrolet Bel Air | Series | Body | Notes | Year 1972 |
Make / Model Chevrolet Bel Air | Series | Body | Notes Bel Air, All Models | Year 1972 |
Make / Model Chevrolet Biscayne | Series | Body | Notes | Year 1972 |
Make / Model Chevrolet Biscayne | Series | Body | Notes Biscayne, All Models | Year 1972 |
Make / Model Chevrolet Full Size Chevy | Series | Body | Notes Brookwood, All Models | Year 1972 |
Make / Model Chevrolet Full Size Chevy | Series | Body | Notes Caprice, All Models | Year 1972 |
Make / Model Chevrolet Full Size Chevy | Series | Body | Notes Townsman, All Models | Year 1972 |
Make / Model Chevrolet Impala | Series | Body | Notes | Year 1972 |
Make / Model Chevrolet Impala | Series | Body | Notes Impala, All Models | Year 1972 |
Make / Model Chevrolet Kingswood | Series | Body | Notes | Year 1972 |
Make / Model Chevrolet Kingswood | Series | Body | Notes Kingwood, All Models | Year 1972 |
