SKU
40-389120-1

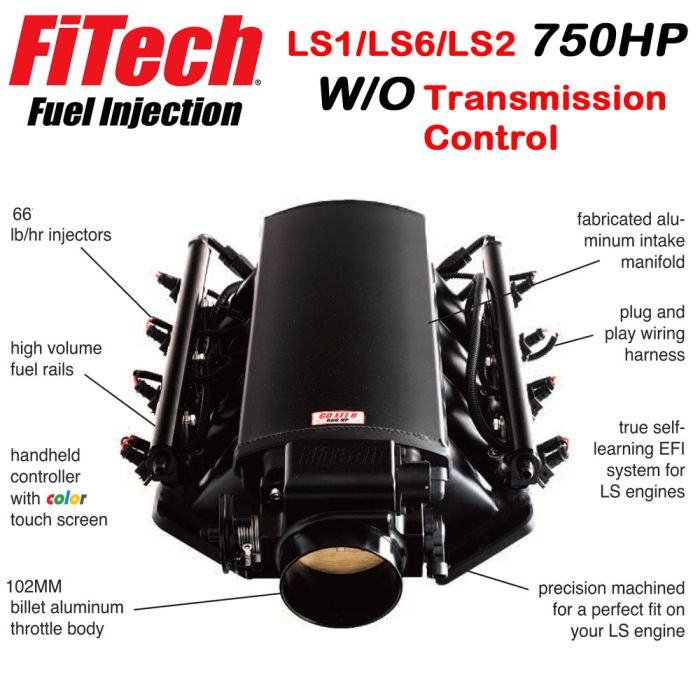

Ultimate LS Fuel Injection Kit for LS1/LS2/LS6 - 750HP w/o Trans. Control | FiTech - 70003

0% of 100
0  Reviews Add Your Review
$1,884.99 Kit
Fitment
Bel Air, 1958 thru 1981 View More
Product Details
The Fastest AND Easiest Way To Get Your New ... View More
Availability: Ships Direct From Manufacturer

  • The Fastest AND Easiest Way To Get Your New Or Pre-Owned LS Crate Engine Up And Running
  • Eliminates Sourcing Mismatched Parts, Cutting & Splicing Old Harnesses, & Re-Flashed ECU's from "Craigs List" Tuners
  • Black Anodized Aluminum Parts Are Corrosion Resistant & Look Tough
  • Self-Learning ECU With Data Logging & Touch Screen Controller For Easy Setup & Configuration
  • On The Fly Programmable Target Air Fuel Ratio & Timing (If Desired)
  • Works With All 1997-2004 LS1/LS6 and 2005-2007 LS2 Engines
  • Supports Engines Up To 750 HP (Including Supercharged, Turbocharged, & Nitrous)
  • NOTE:  MUST Use Factory Coil Pack Sub-Harness.  Does NOT Include Automatic Transmission Control

SPECIFICATIONS:

  • Quality Level:  High Performance Upgrade
  • Intake Manifold Construction:  Fabricated Aluminum, 3MM, TIG Welded
  • Intake Manifold Finish:  Black Anodized Aluminum With Embossed FiTech logo
  • Intake Manifold RPM Range:  1,500 RPM to 6,500 RPM
  • Metering Style:  Fully Sequential Fuel & Spark With Individual Cylinder Trim
  • Tunability:  Use Programmable Or Self Tuning
  • Throttle Body:  102MM Billet Aluminum, Black Anodized, Cable Operated, Progressive Linkage Pulley With Double Return Spring & Adjustable Stop, Parabolic Inlet Matching For Smooth Throttle Transitions (Same As OE)
  • Fuel Rails:  High Flow Billet Aluminum, Black Anodized, AN Fittings & Fuel Crossover
  • Fuel Injectors:  Flow Matched 66 Lb./Hour
  • Engine Block Style:  Stock / OEM Standard Deck
  • Coil Compatibility:  Factory Stock Car & Truck LS1, LS6, LS2
  • Crank & Cam Compatibility:  24X and 58X
  • Custom Cam Friendly:  Yes
  • Speedometer Output Driver:  Yes, Works With Most Speedometers
  • Tachometer Output Driver:  Yes, Works With Most Tachometers (5V)
  • Knock Sensor Control:  Yes
  • O2 Sensor Control:  Yes, Dual Bosch Wide Band With Dual Trim Control (Self Learning)
  • Transmission Control:  No (Available With Different Model - 70004)
  • Compatible With Supercharger, Turbo, Nitrous:  Yes
  • MAP Sensor:  3 Bar, Automatically Detects Up To 30 PSI Boost
  • What's In The Box:  Low Profile 92MM Inlet, Aluminum Fabricated Intake, Billet Fuel Rails With AN Fittings & Fuel Crossover, Hi Flow Cable Operated 92MM Throttle Body, Progressive Linkage Pulley With Double Return Spring & Adjustable Stop, Electronics Calibration Module,Wiring Harness, Bosch Dual Wide Band Controlled O2 Sensor With Dual Trim Control (Self Learning), Stainless Steel Oxygen Sensor Bung (Clamp Or Weld-On), 3 Bar MAP Sensor, Coolant Temp. Sensor, IAT Sensor, TPS Sensor, IAC Motor, All Necessary Hardware & CNC Machined O-Ring Gaskets, ECM With Wiring Harness & Hand Held Controller w/Windshield Mount
  • Manufacturer's Limited Warranty:  1-Year All Parts Except ECM, Lifetime On ECM Only
  • Product Weight:  32.6 Lbs.
  • Product Dimensions:  28" x 16" x 10"

Complete Self Tuning Induction Systems for LS engines designed for the do-it-yourself Hot Rodder to the professional EFI tuner! This system is ready to go with everything needed to complete the induction system of your LS engine and get you on the road easily and faster than any system on the market today. Forget sourcing mismatched parts and cutting and splicing old harnesses and re-flashed ECU’s from “Craigs List” tuners. FiTech’s Ultimate EFI is a complete Kit. Suitable for that junkyard 5.3 to a stroker 427, we have you covered! Check out the list of features and you will wonder why it’s never been so simple to ditch that old factory hardware or top off that fresh long block. We have taken the work out of getting your new or pull-out LS up and running in a flash. That’s why we call this kit the ULTIMATE EFI.

Ultimate LS Fuel Injection Kit for LS1/LS2/LS6 - 750HP w/o Trans. Control | FiTech - 70003


Combined Cancer/Birth Defect
WARNING This product can expose you to chemicals including Cadmium which is known to the State of California to cause cancer on birth defects or other reproductive harm. For more information, visit www.p65warnings.ca.gov
More Information
Eck OEM Number 70003
Brand N/A
Availability Ships Direct From Manufacturer

Products from the same brand

Make / Model Series Body Notes Year
Make / Model Chevrolet Bel Air Base Series Body Notes Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1981
Make / Model Chevrolet Biscayne Base Series Body Notes Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972
Make / Model Chevrolet Biscayne Fleetmaster Series Body Notes Year 1960
Make / Model Chevrolet Brookwood Base Series Body Notes Year 1958, 1959, 1960, 1969, 1970, 1971, 1972
Make / Model Chevrolet Caprice Base Series Body Notes Year 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1974, 1980, 1981, 1982, 1985
Make / Model Chevrolet Caprice Classic Series Body Notes Year 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Make / Model Chevrolet Caprice Classic Estate Series Body Notes Year 1976, 1977, 1978, 1981, 1982
Make / Model Chevrolet Caprice Classic Landau Series Body Notes Year 1976, 1977, 1978, 1979, 1980, 1981
Make / Model Chevrolet Caprice Classic Sport Series Body Notes Year 1975, 1976, 1979, 1980
Make / Model Chevrolet Caprice Estate Series Body Notes Year 1973, 1974
Make / Model Chevrolet Caprice Estate Wagon Series Body Notes Year 1975
Make / Model Chevrolet Caprice Landau Series Body Notes Year 1979
Make / Model Chevrolet Del Ray Base Series Body Notes Year 1958
Make / Model Chevrolet Estate Base Series Body Notes Year 1969, 1970
Make / Model Chevrolet Impala Base Series Body Notes Year 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985
Make / Model Chevrolet Impala Custom Series Body Notes Year 1975, 1976, 1977
Make / Model Chevrolet Impala Custom Landau Series Body Notes Year 1976
Make / Model Chevrolet Impala Estate Series Body Notes Year 1981, 1982
Make / Model Chevrolet Impala Landau Series Body Notes Year 1977, 1978, 1979
Make / Model Chevrolet Impala S Series Body Notes Year 1976
Make / Model Chevrolet Impala Sport Series Body Notes Year 1975, 1976, 1979, 1980
Make / Model Chevrolet Impala SS Series Body Notes Year 1964, 1965, 1966, 1967
Make / Model Chevrolet Kingswood Base Series Body Notes Year 1959, 1960, 1969, 1970, 1971, 1972
Make / Model Chevrolet Kingswood Estate Series Body Notes Year 1969, 1970, 1971, 1972
Make / Model Chevrolet Nomad Base Series Body Notes Year 1958, 1959, 1960
Make / Model Chevrolet Parkwood Base Series Body Notes Year 1959, 1960
Make / Model Chevrolet Sedan Delivery Base Series Body Notes Year 1958, 1959, 1960
Make / Model Chevrolet Townsman Base Series Body Notes Year 1969, 1970, 1971, 1972
Make / Model Chevrolet Yeoman Base Series Body Notes Year 1958
